Linear System Capping Machine
| Feature | Value |
|---|---|
| System | Linear |
| Base Frame | AISI 304 /AISI 316L Stainless Steel Frame |
| Capping Drive System | Servo Torque / Asynchronous Motor / Mechanical Torque / Air Motor |
| Capping System | Gripper / Three Ball System / Pick & Place / Flat Clamping / Capping / Press |
| Cap Feeding | Elevator / Vibratory Bowl / Rotary Table |
| Electrical Requirement | 380 V, 50 Hz, 3 Phase |
| Air Requirement | 6-8 Bar Inlet and Outlet Line Full Sensors |

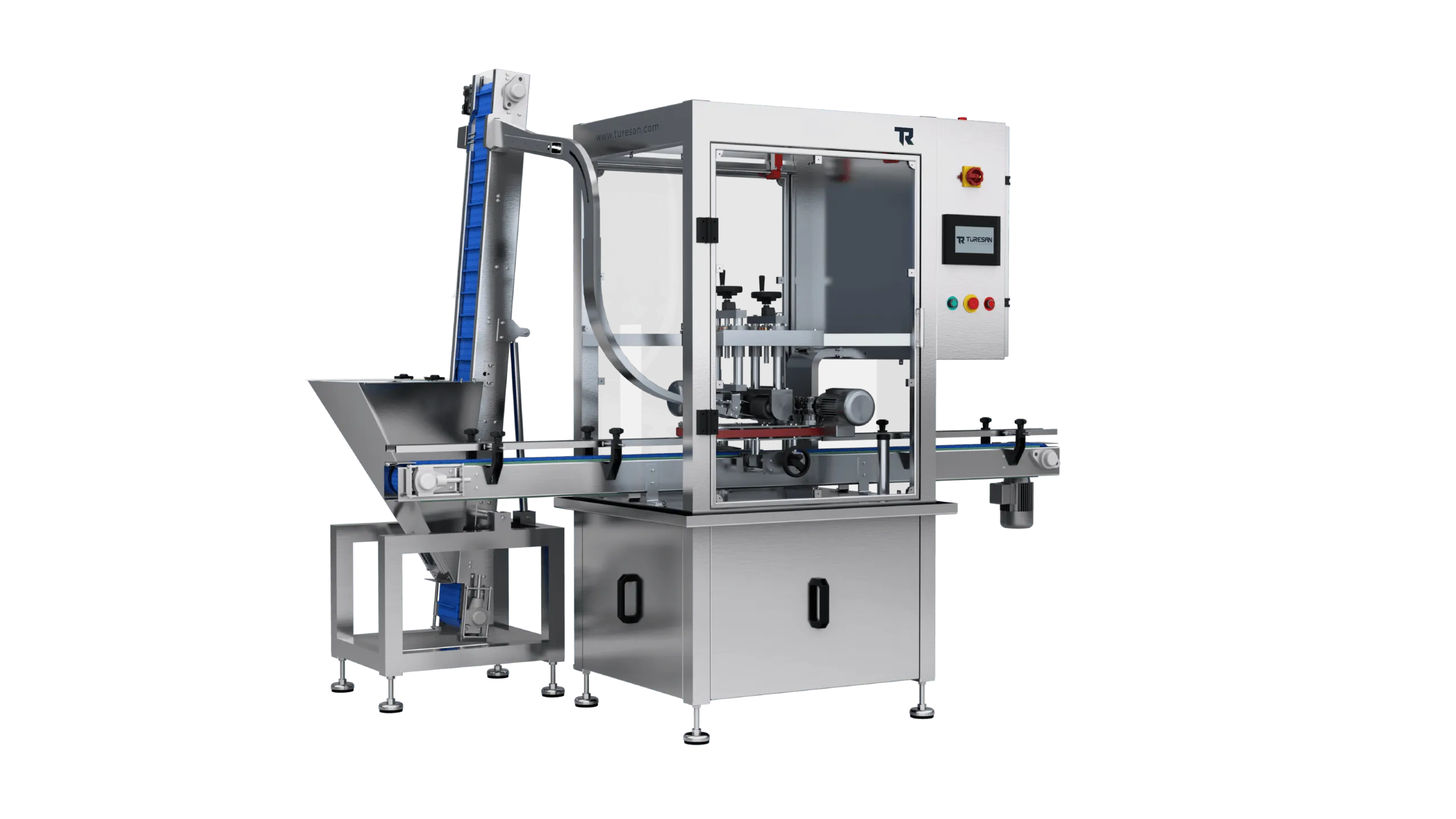

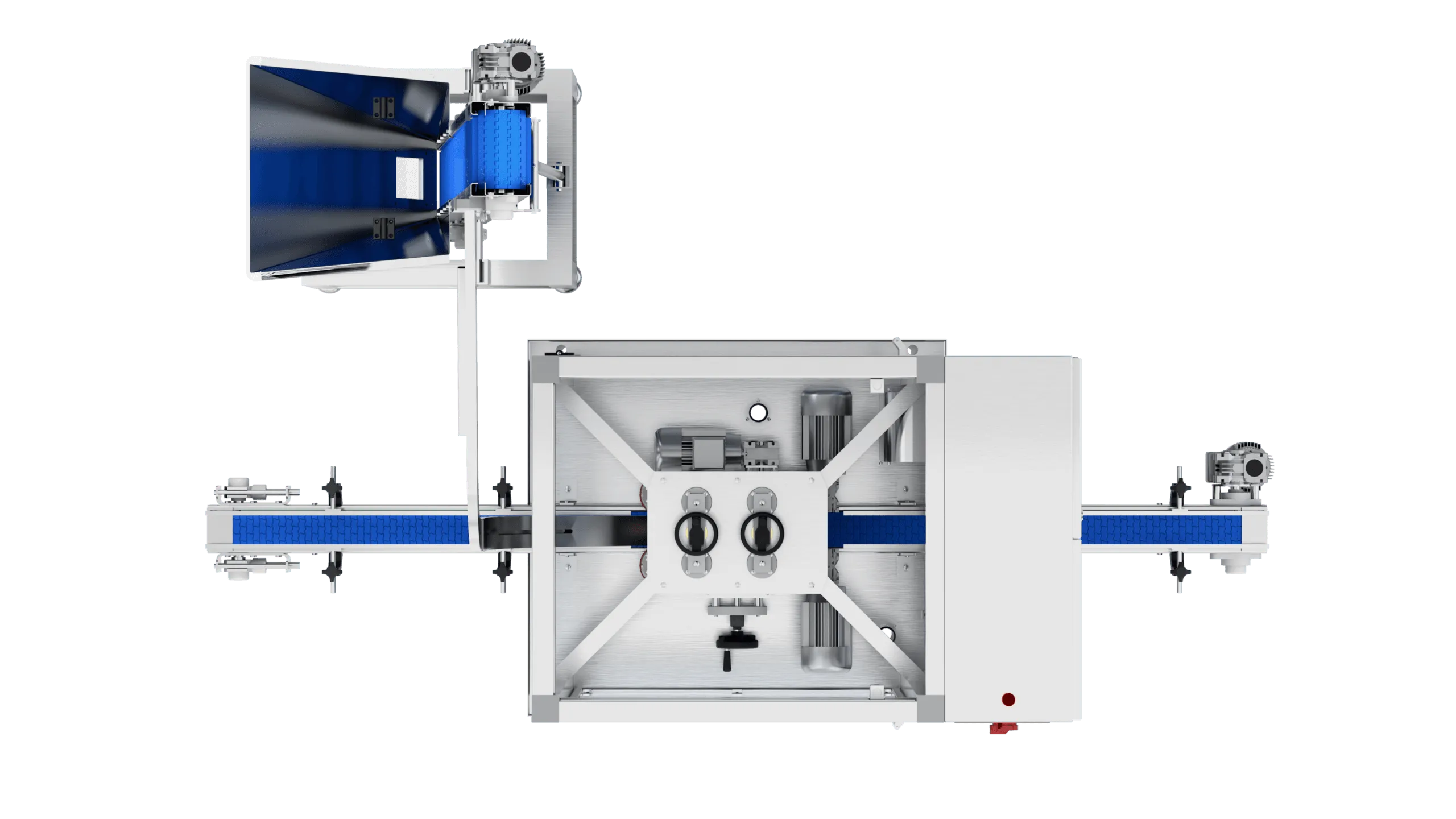

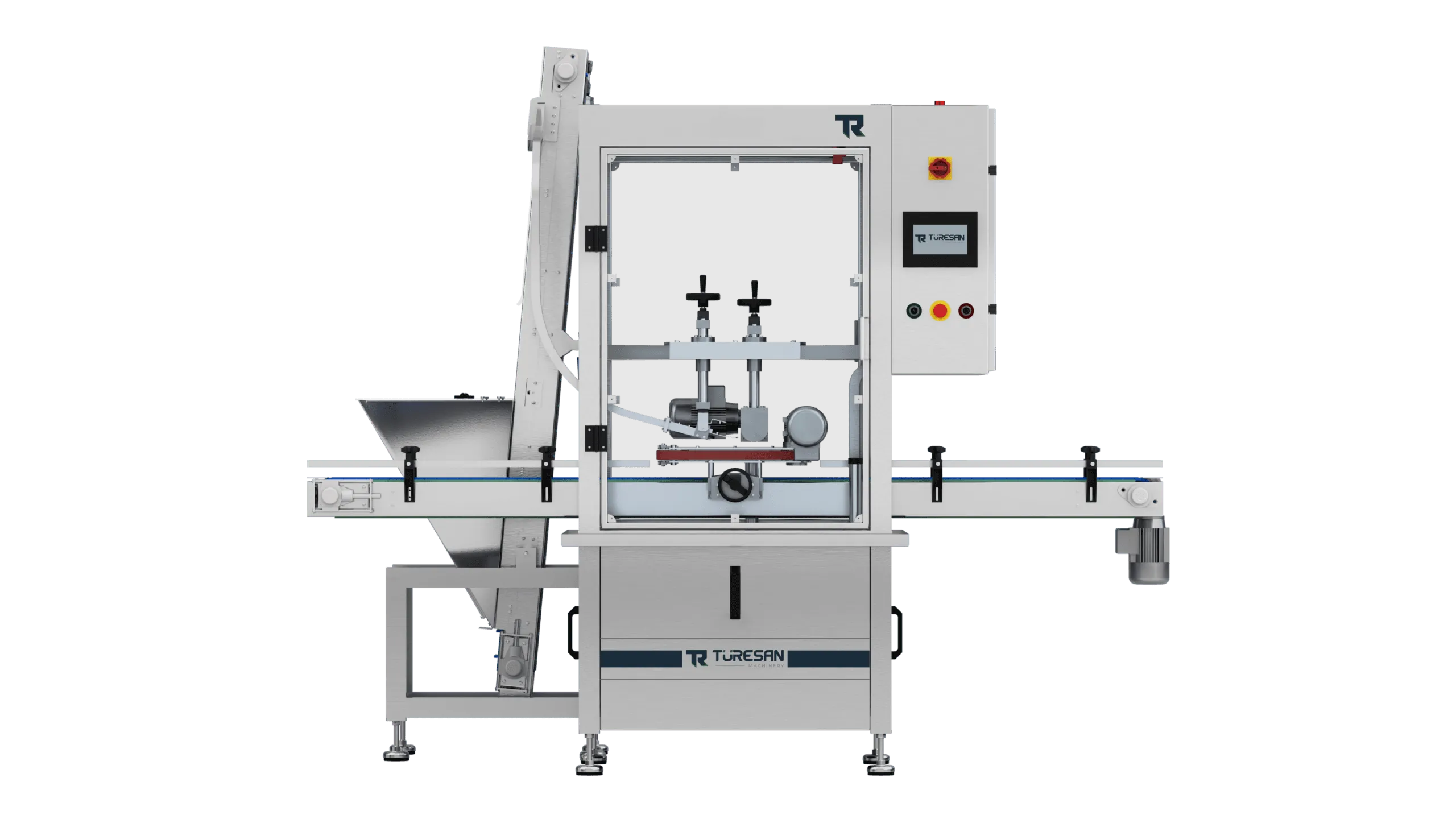

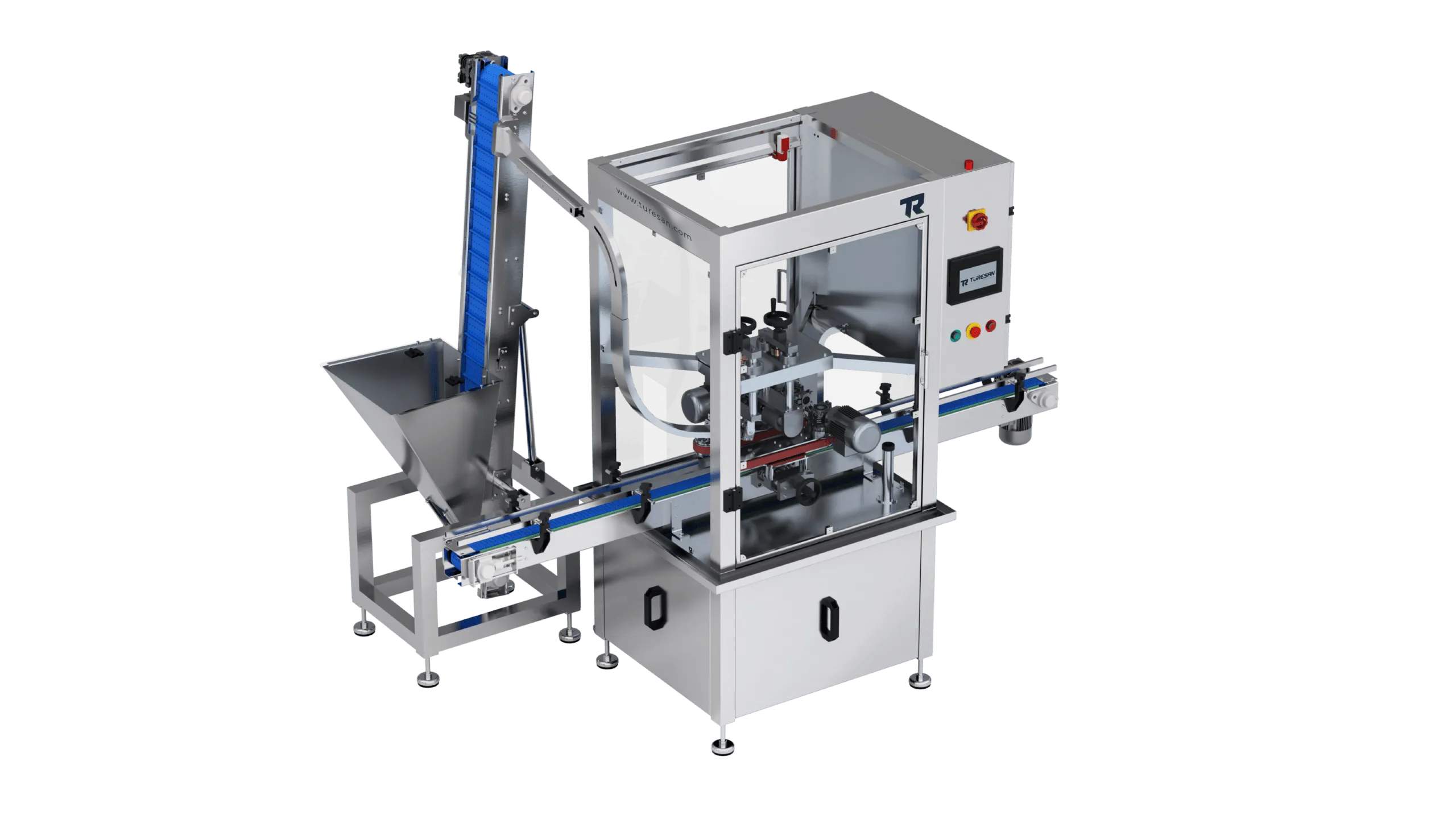

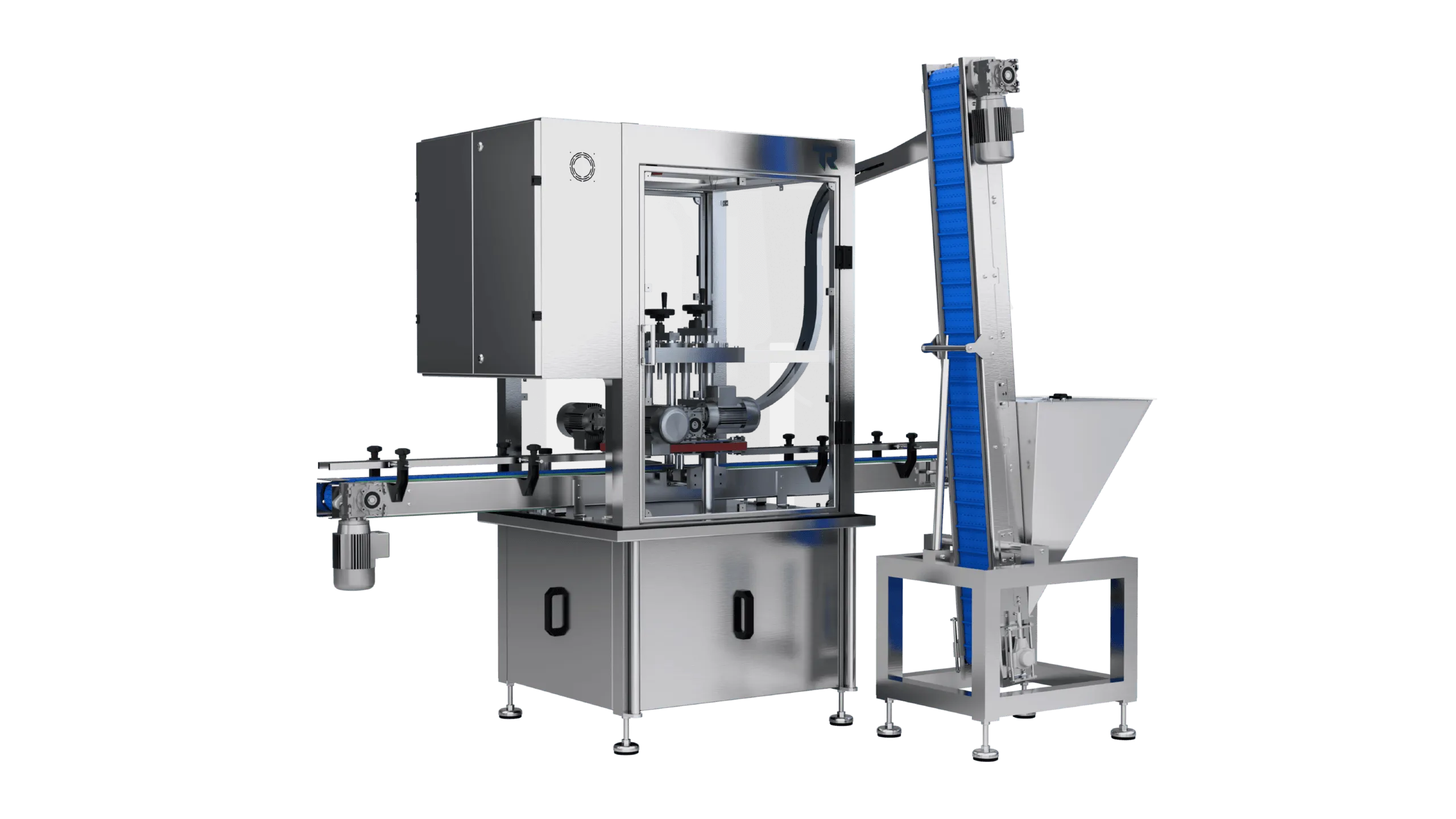

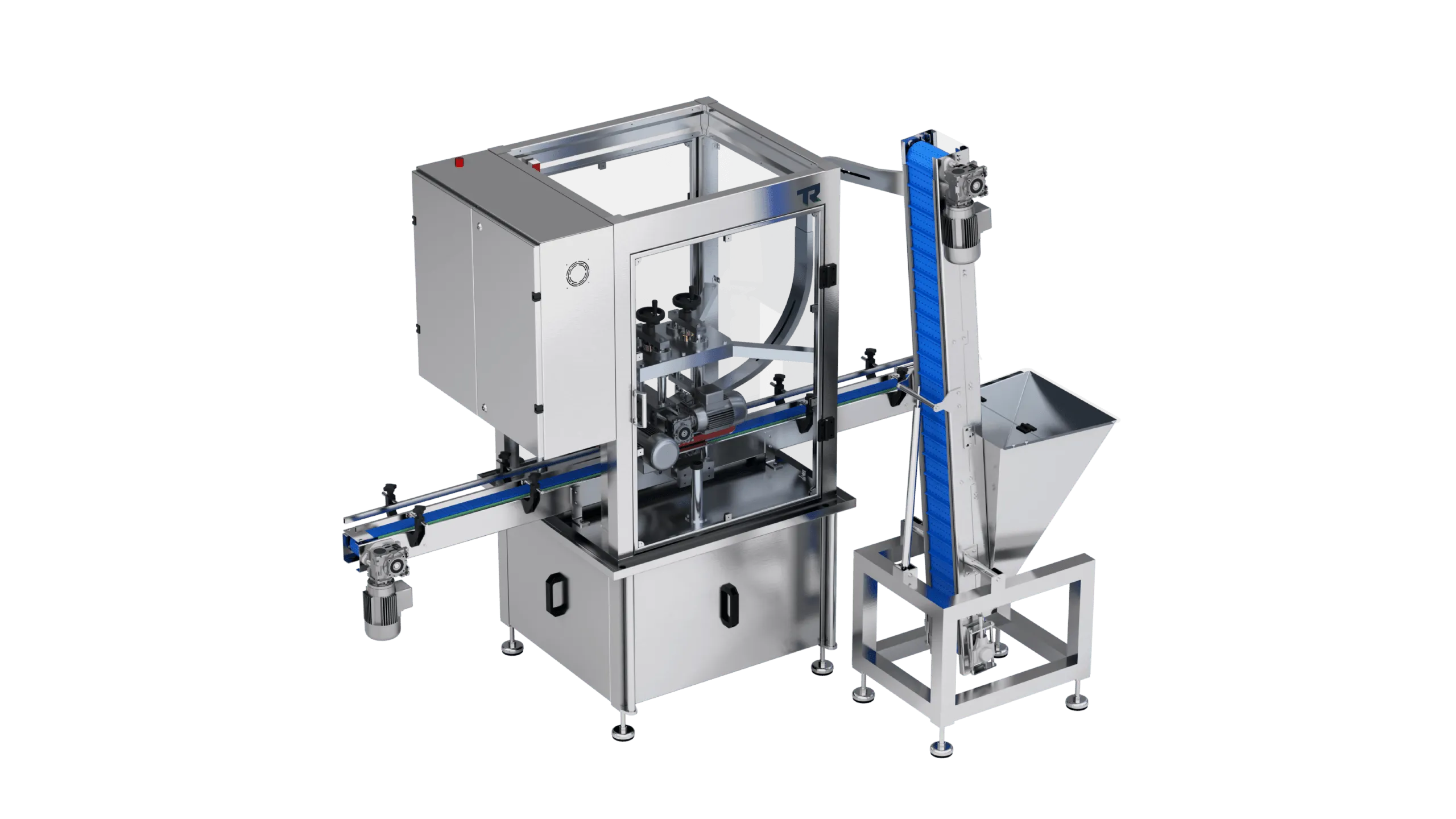

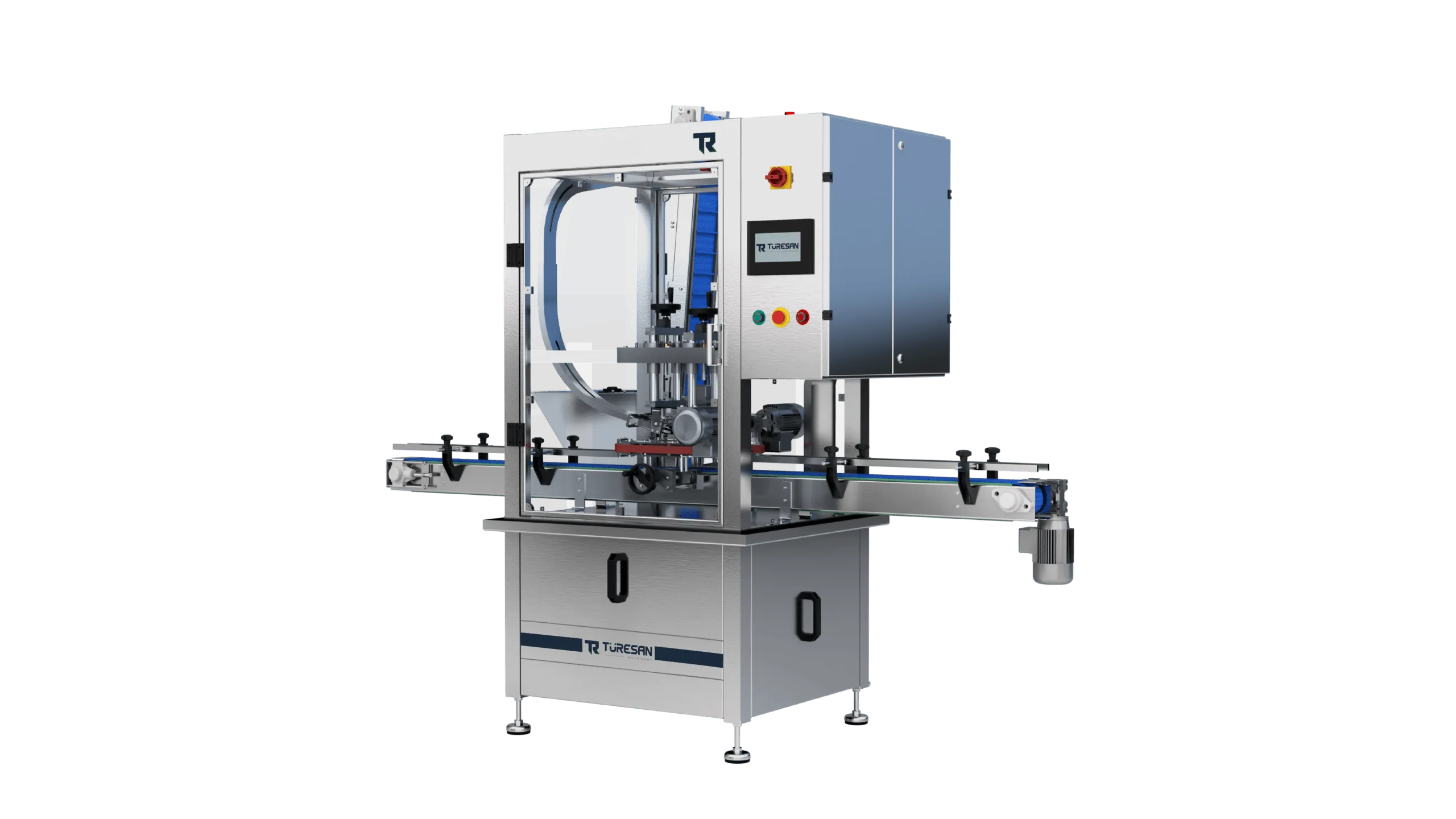

Linear System Capping Machine
The linear system cap sealing machine is an industrial solution developed for the fast, safe and precise sealing of packaging with different cap types. Featuring an AISI 304 stainless steel frame construction, the system offers durable and hygienic use and can be safely employed in the food, cosmetics, chemical and pharmaceutical industries.
It adapts to different production needs with servo torque, asynchronous motor, mechanical torque or pneumatic motor cap sealing drive options. It offers flexible operation across a wide range of caps thanks to gripper, three-ball system, pick & place, flat clamping, smearing and press sealing systems. Continuous production is supported by elevator, vibrating bowl, or drum system options as cap feeding units.
Operating on a 380 V, 50 Hz, 3-phase electrical infrastructure and 6–8 bar air requirement, the linear cap sealing machine maintains stable, controlled, and highly efficient sealing by continuously monitoring product flow on the production line via inlet and outlet line-full sensors.
