Conveyor System Linear Tablet Counting Line
Bottle Cleaning Machine With Air
| Feature | Value |
|---|---|
| Construction | AISI 304 Stainless Steel Chassis |
| Number of Nozzles | 1 – 12 |
| Air Quality | 0.12 Micron Filtered and Ionised |
Conveyor System Linear Tablet Counting Machine
| Feature | Value |
|---|---|
| System | Linear |
| Filling System | Vibration |
| Construction | AISI 304 Stainless Steel Frame, Surfaces in contact with the product are AISI 316L Stainless Steel |
| Number of Channels | 8-24 |
| Number of Nozzles | 1-2 |
| Bottle Gap | 15-500 ml |
| Tablet Diameter | Max. 22 mm |
| Counting Accuracy | ± %0,3 |
| Capacity | It is determined according to the bottle shape, number of nozzles and product viscosity. |

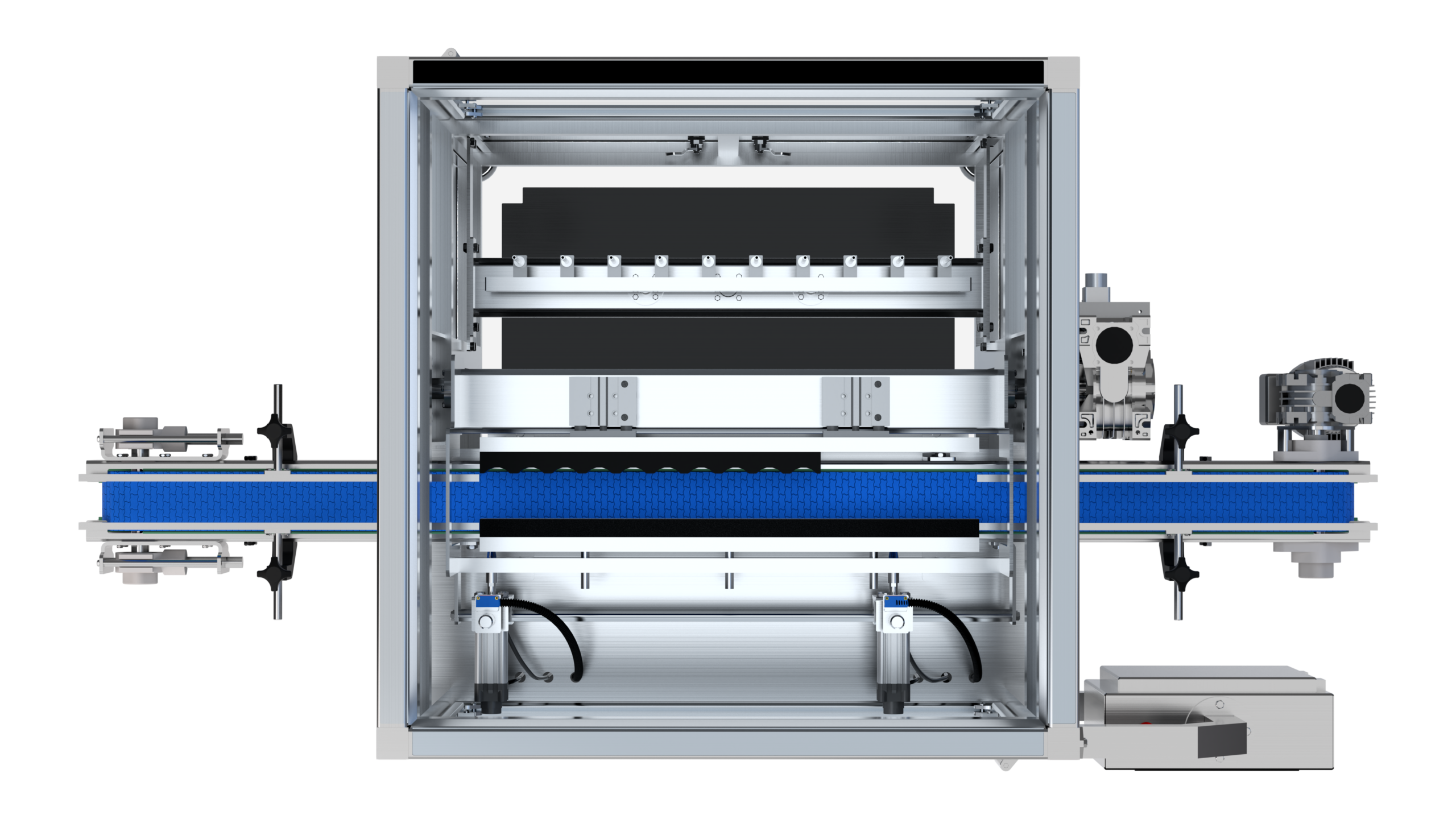

Capping Machine
| Feature | Value |
|---|---|
| System | Linear / Rotary |
| Construction | AISI 304 Stainless Steel Frame, Surfaces in contact with the product are AISI 316L Stainless Steel |
| Lid Closing Drive System | Servo Torque / Asynchronous Motor / Mechanical Torque / Air Motor |
| Capping System | Gripper / Three-Ball System / Pick & Place / Flat Clamping / Coating / Press |
| Cover Feeding | Elevator / Vibrating Bowl / Drum |
Labelling Machine
| Feature | Value |
|---|---|
| System | Linear / Rotary |
| Labelling Systems | Full Wrap Labelling / Single-Sided Labelling / Double-Sided Labelling / Bottom and Top Labelling |
| Applicator Options | Domestic / Imported |
Requirements for the Line
| Feature | Value |
|---|---|
| Electrical Requirements | 380V, 50 Hz, 3-phase |
| Air Requirements | 6-8 Bar |

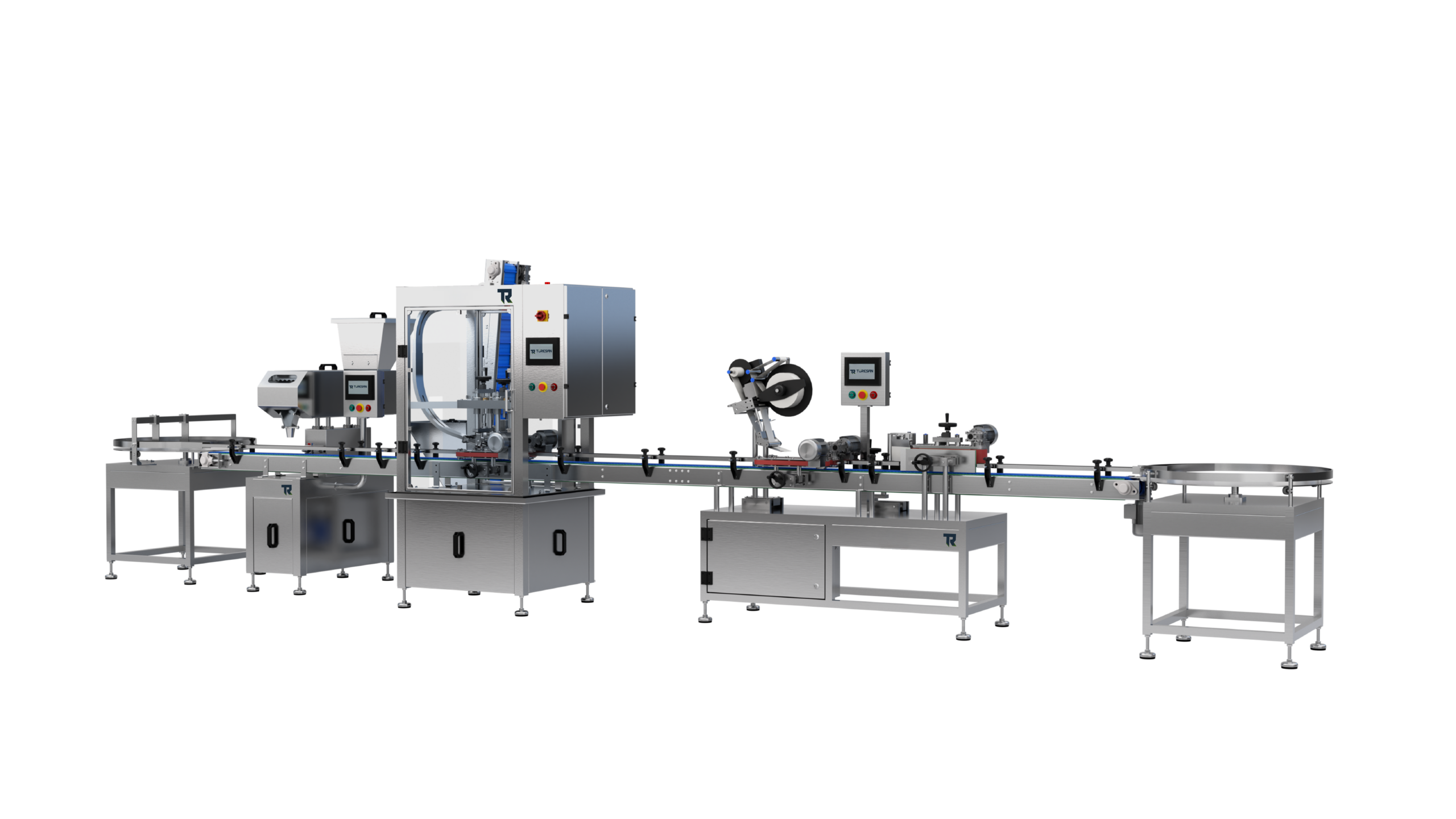

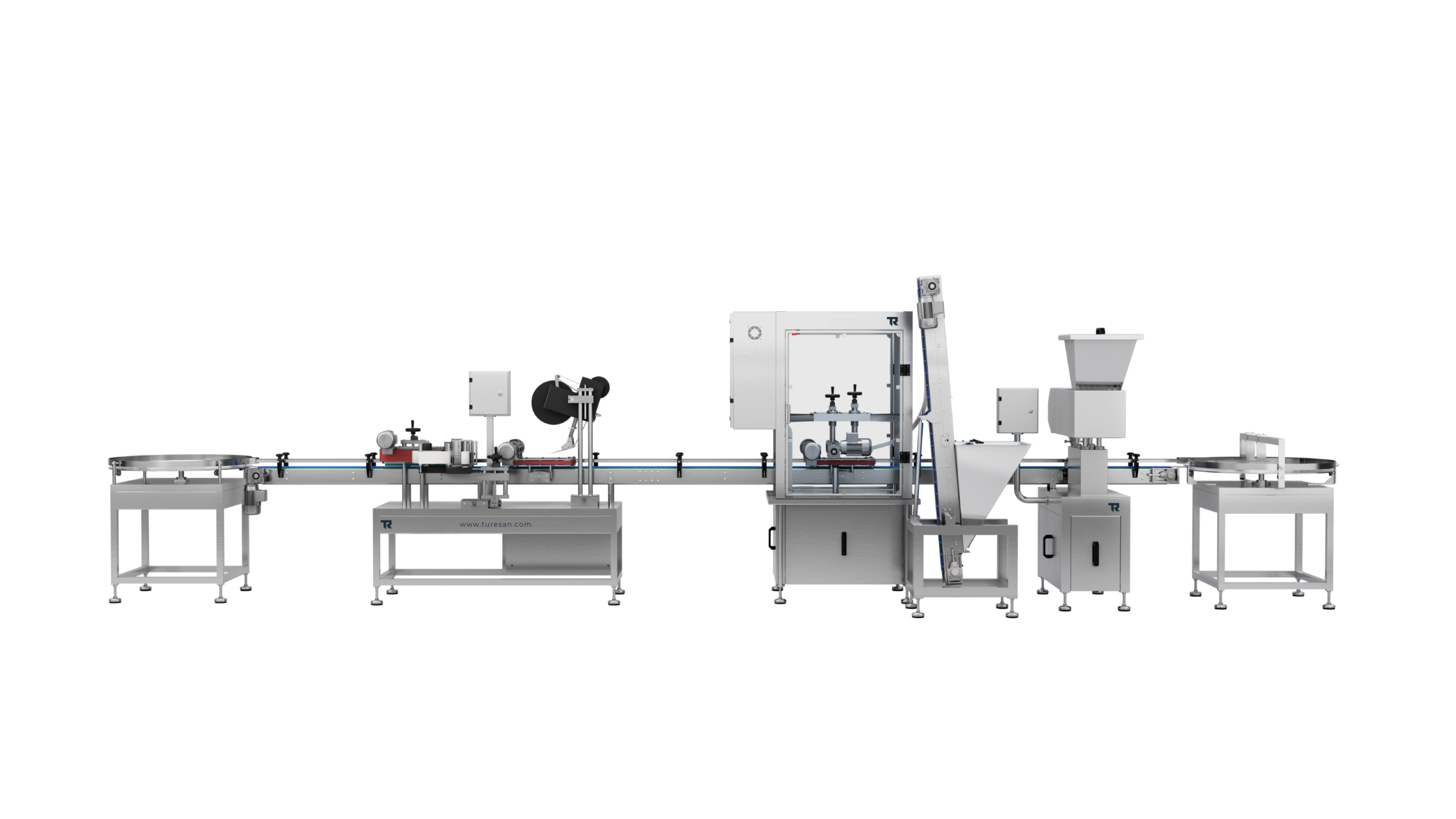

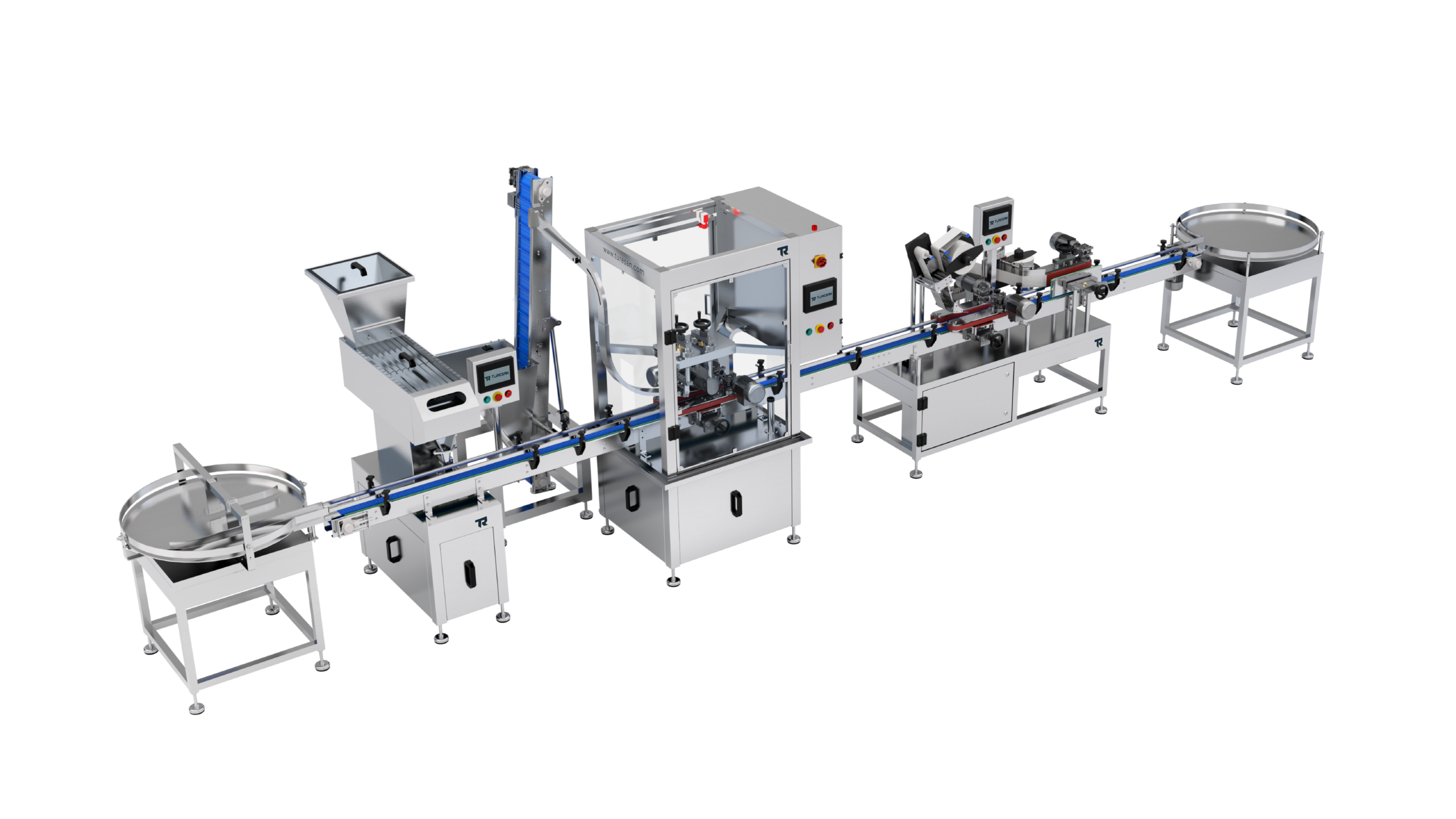

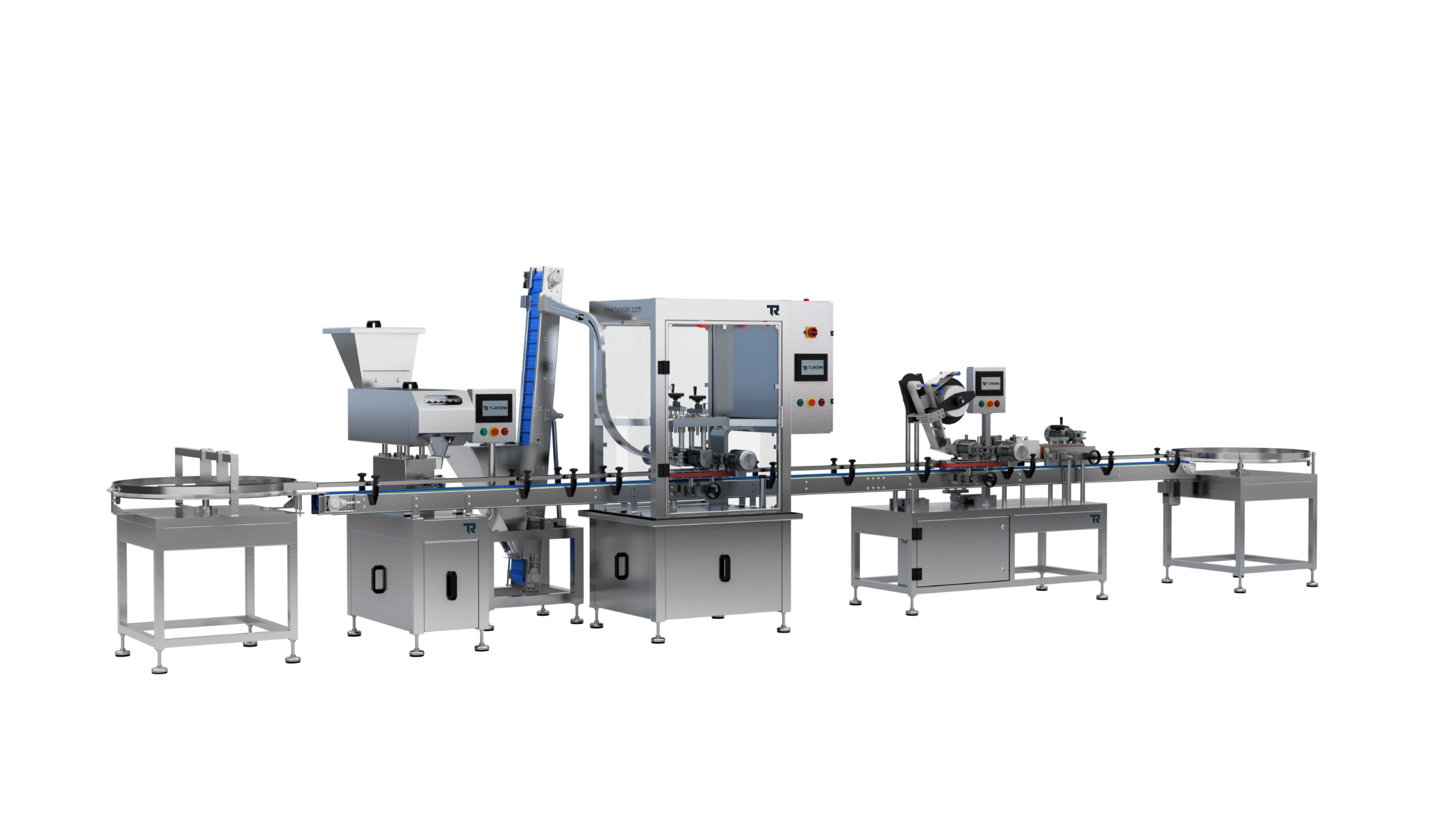

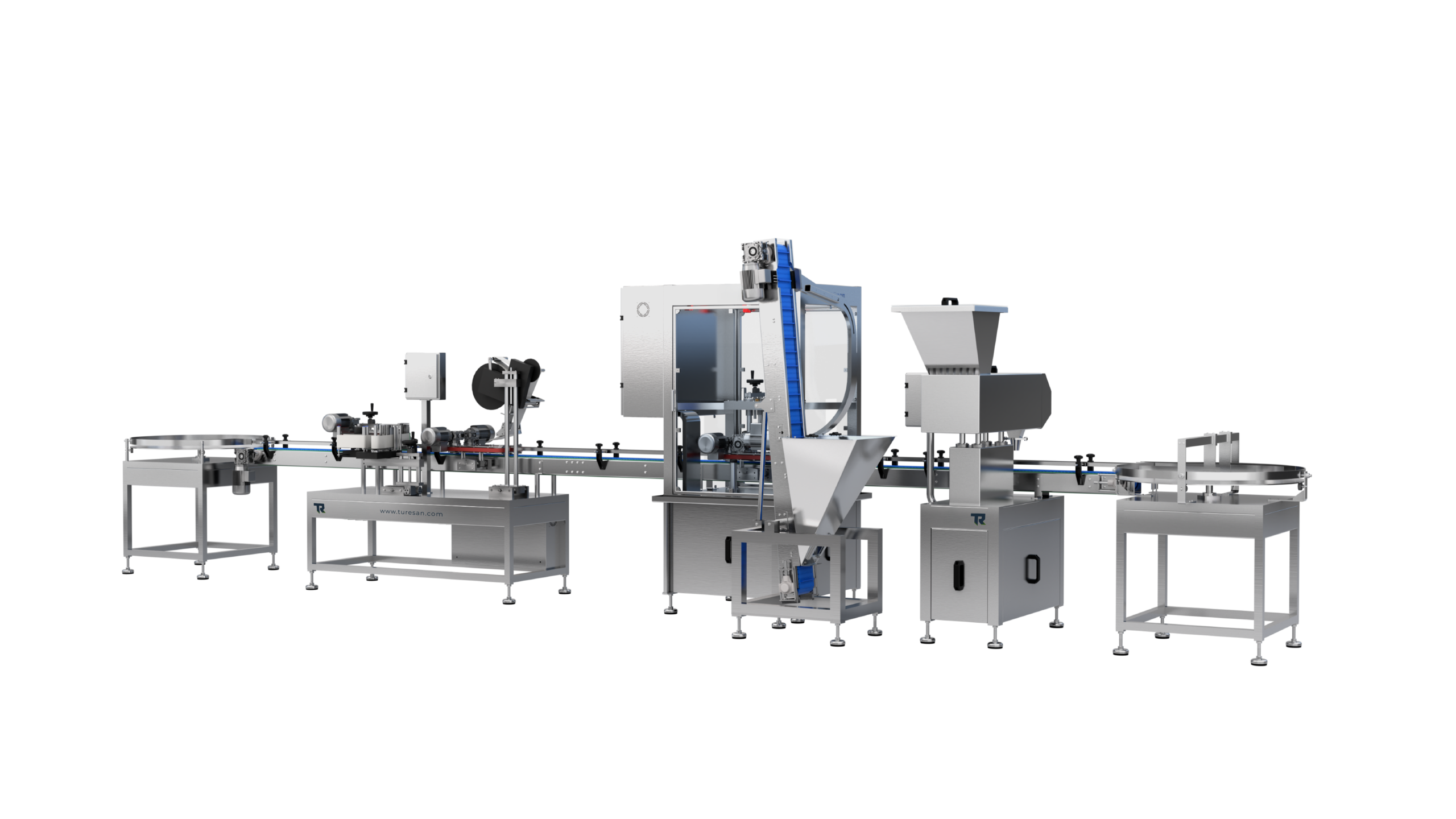

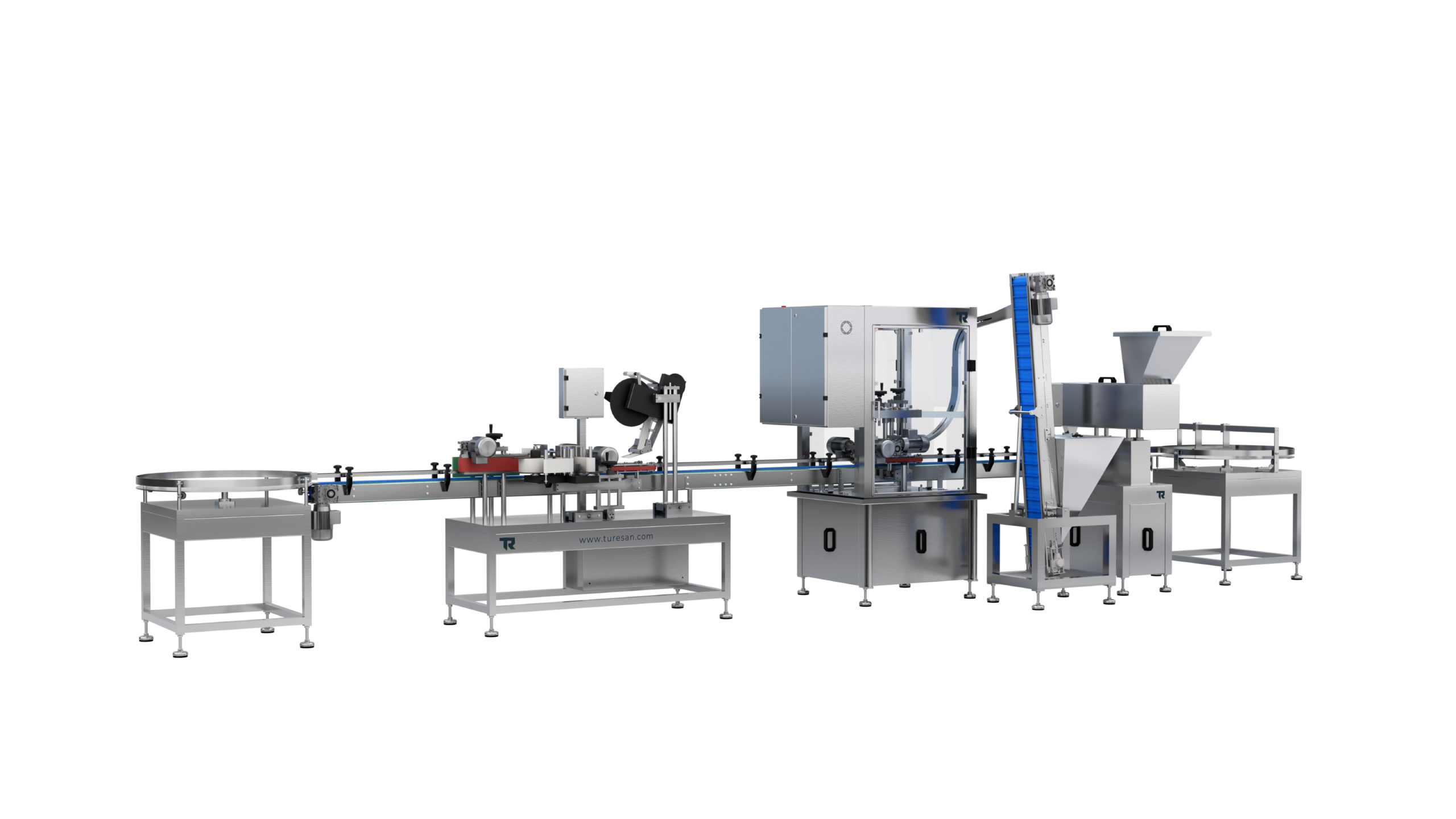

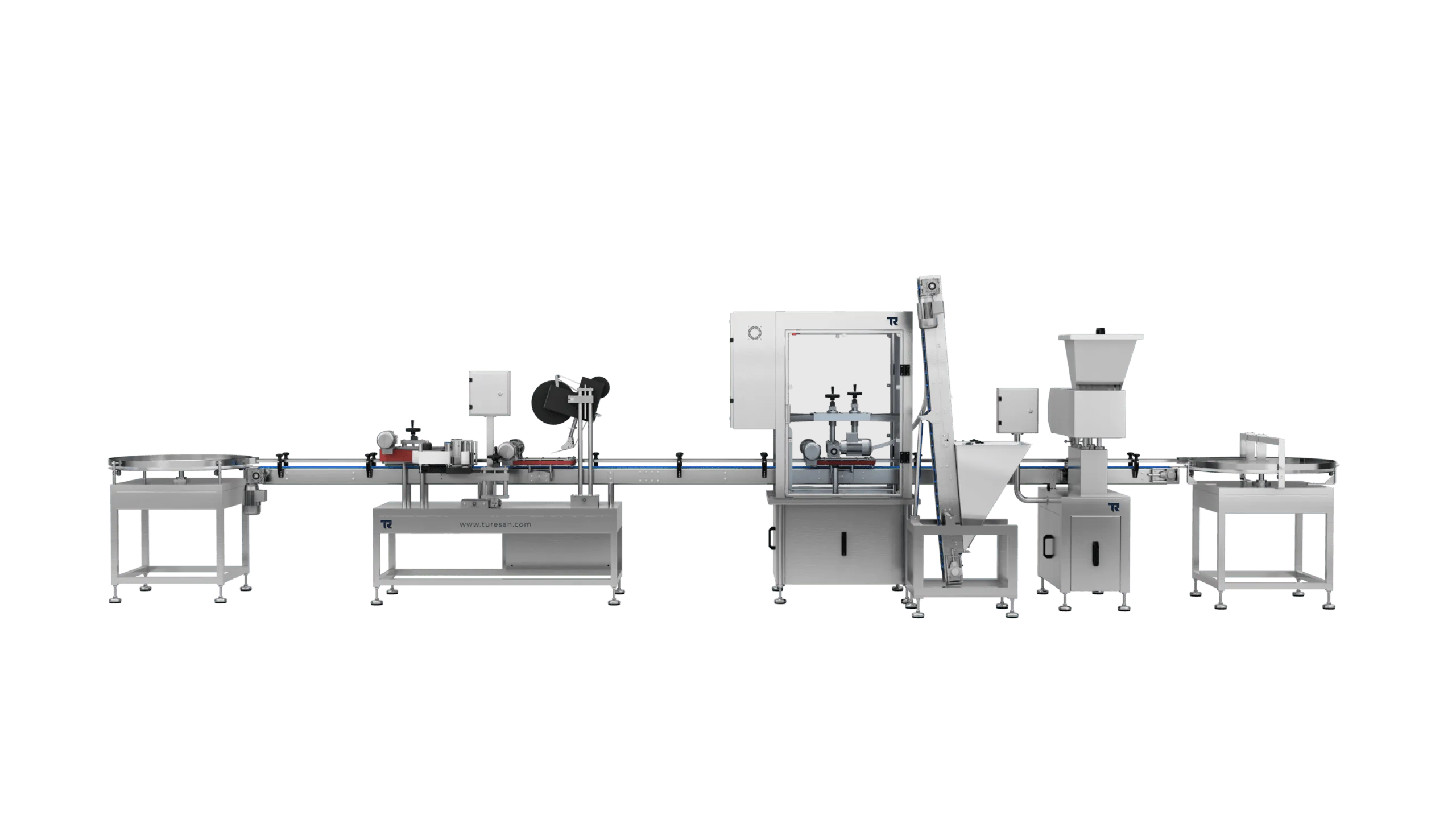

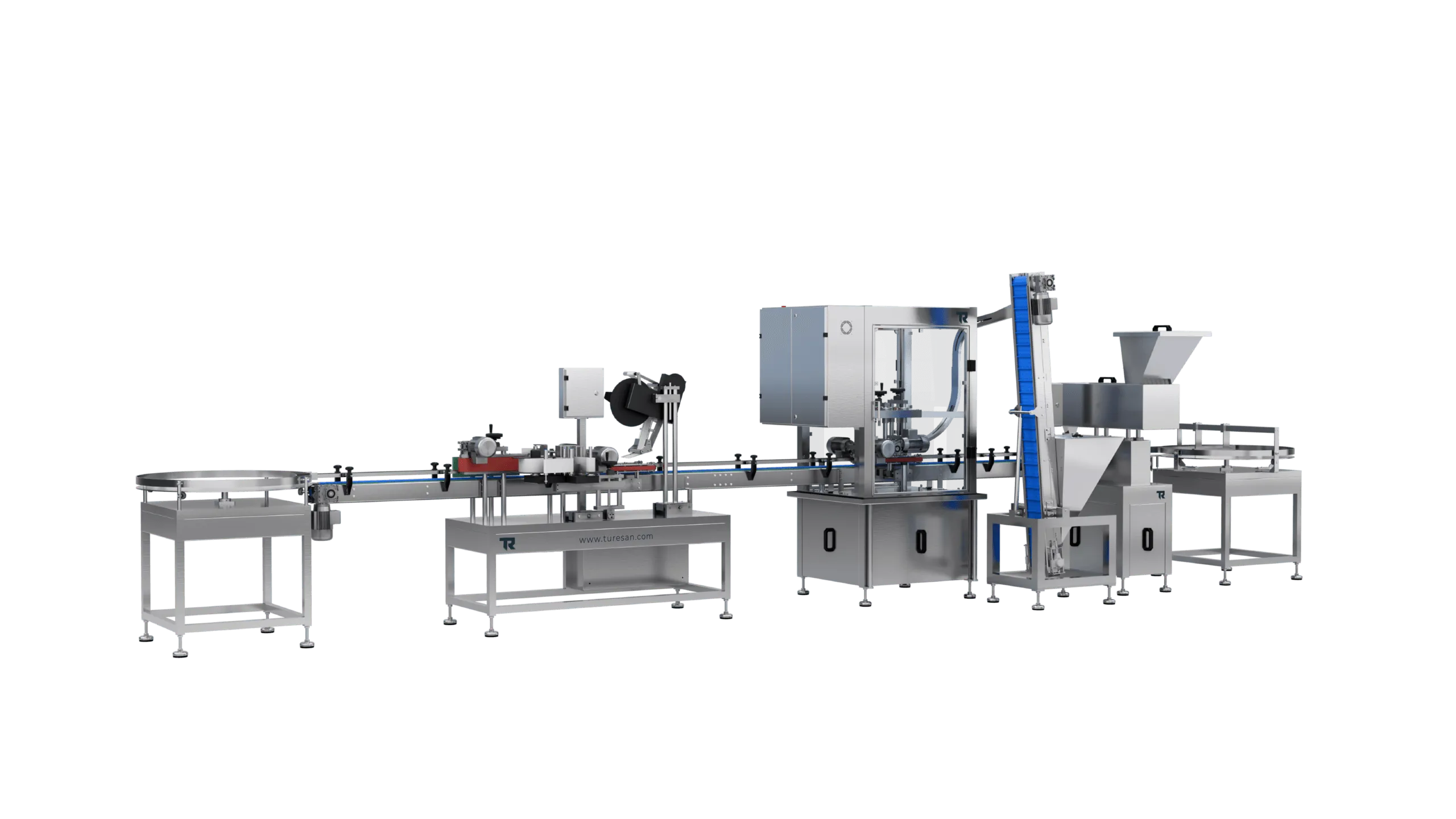

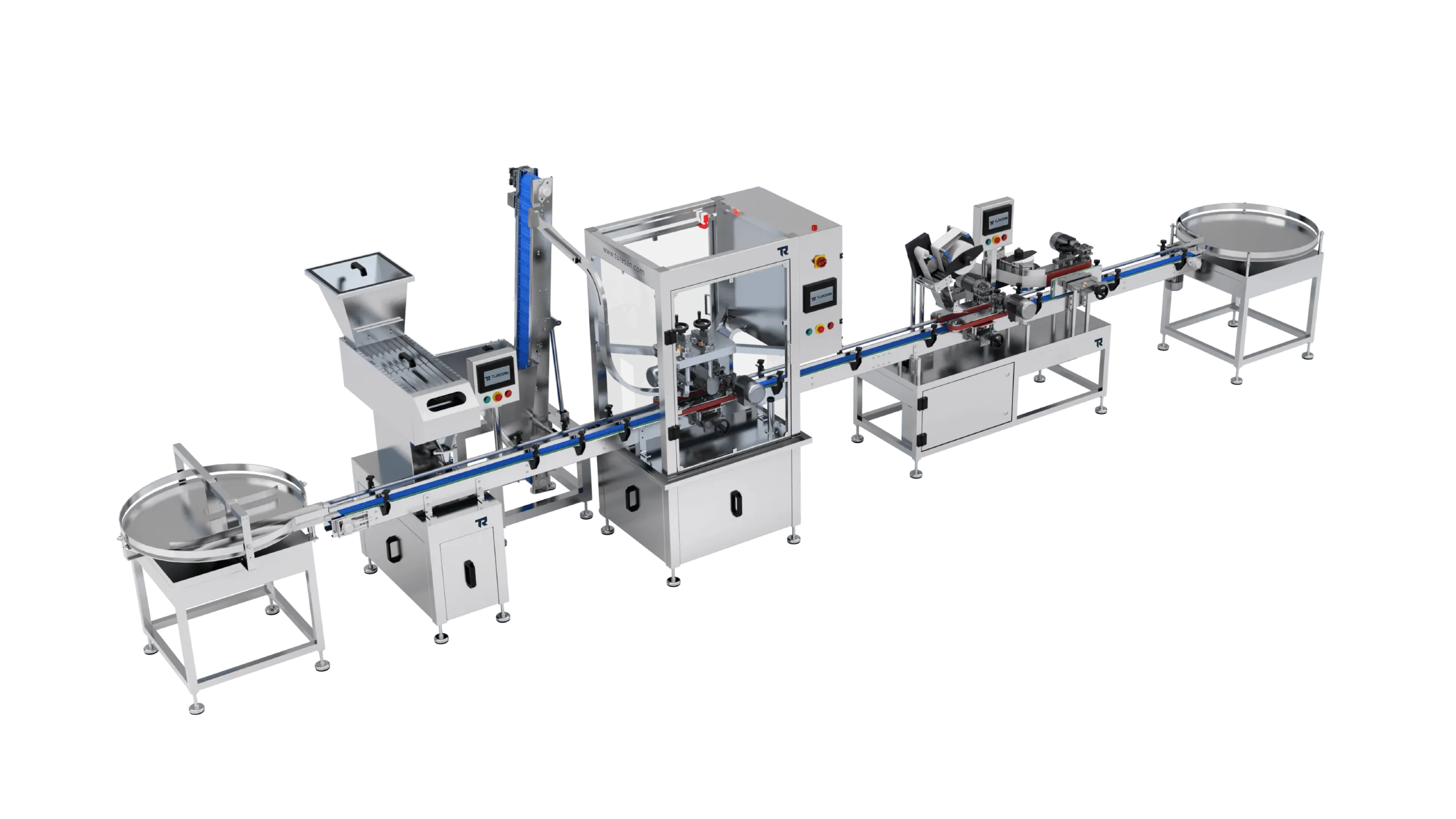

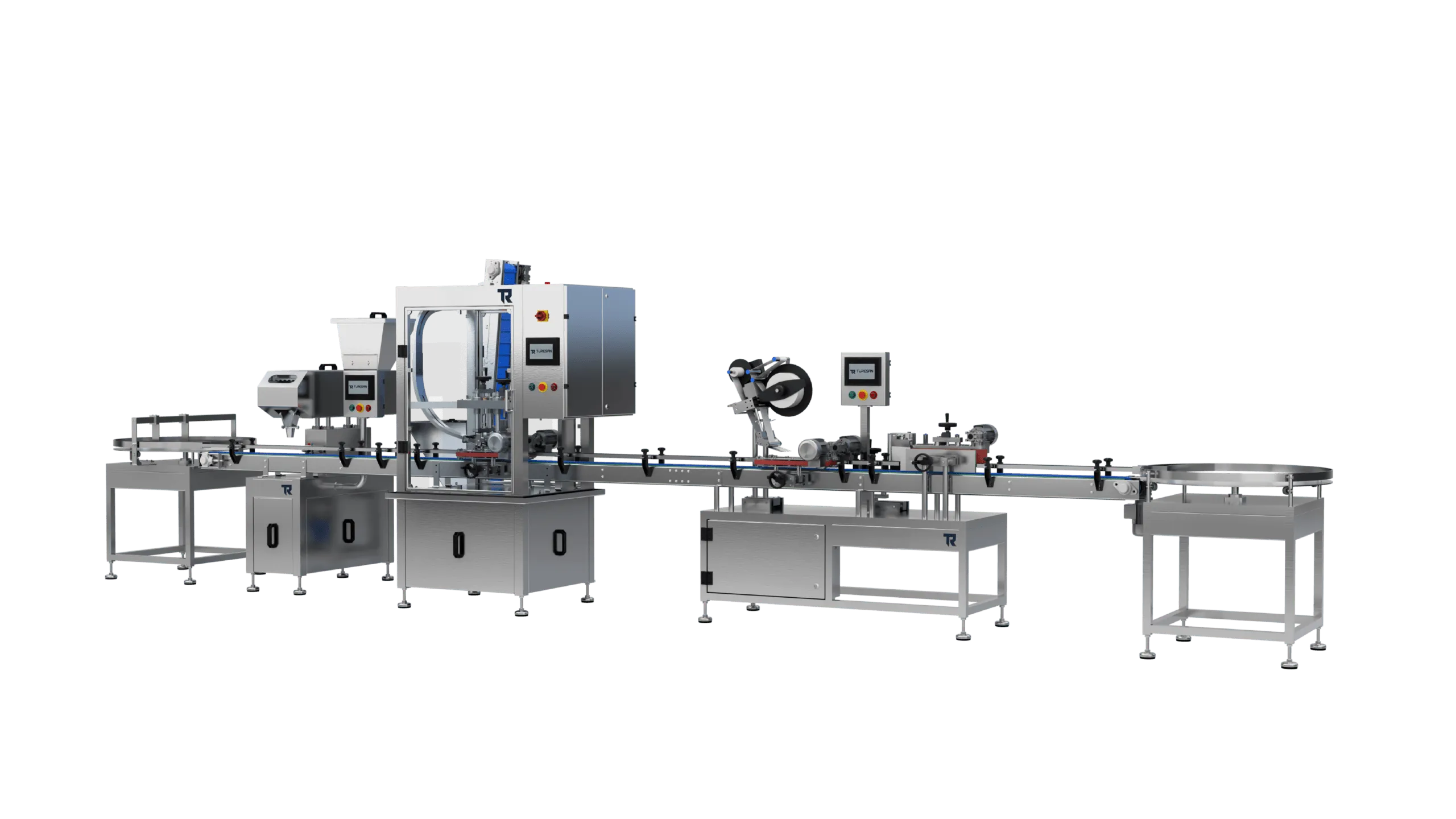

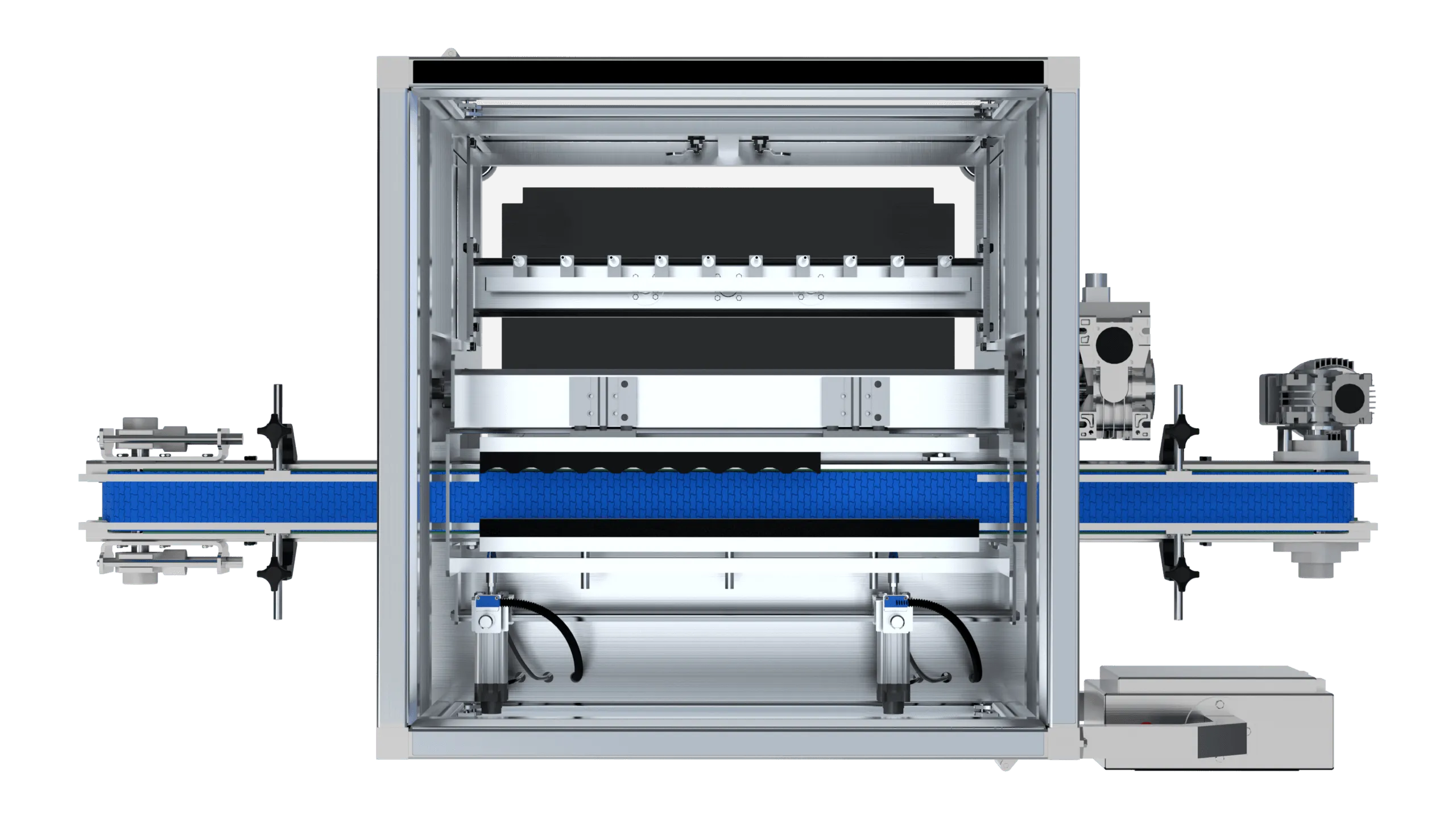

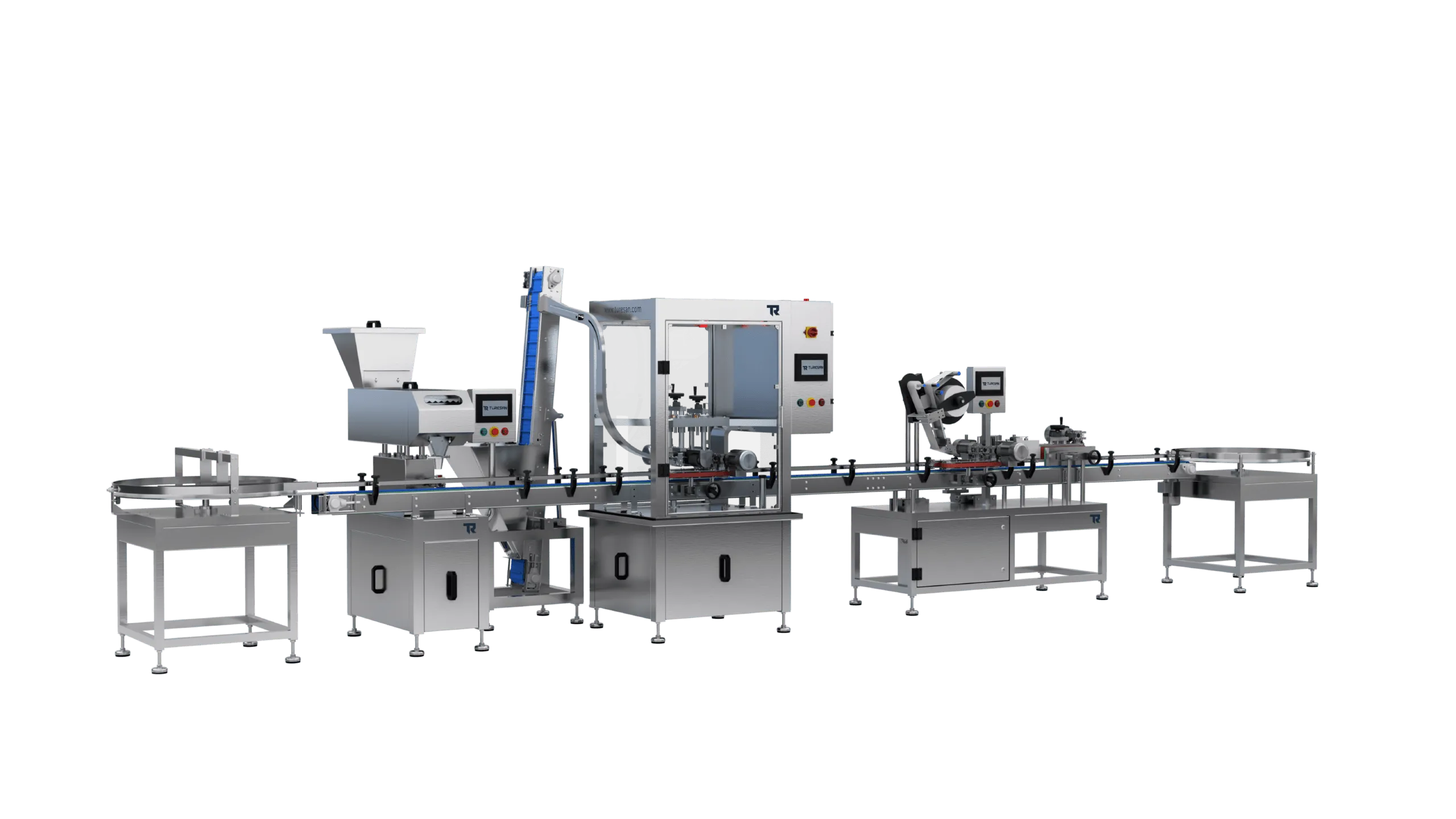

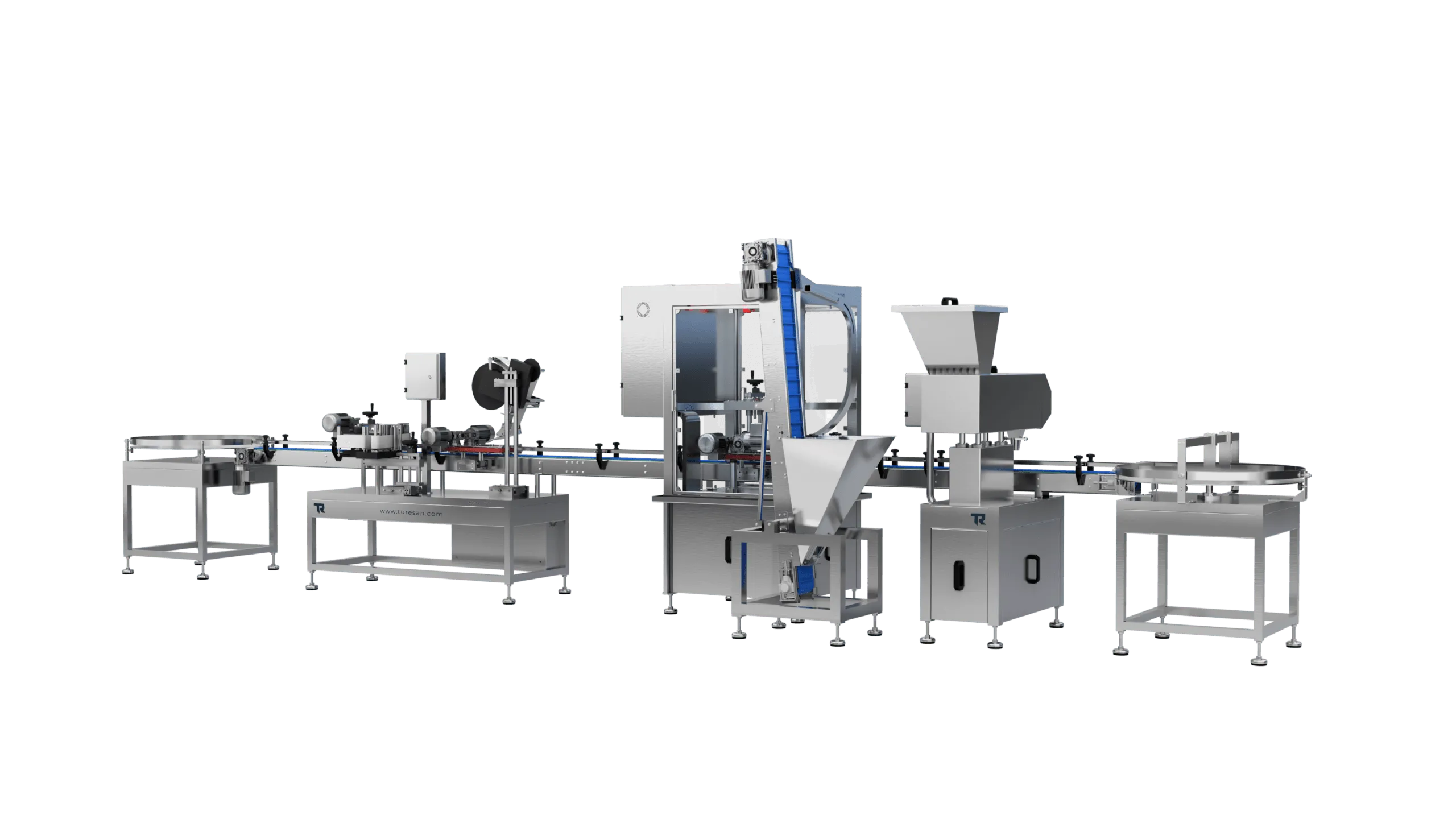

Conveyor System Linear Tablet Counting Line
The conveyor linear tablet counting line is an industrial solution developed to accurately, quickly and reliably count and package products in tablet and capsule form. Thanks to its linear operating principle, products are transferred to bottles and packaging moving on the conveyor belt at high speed and with repeatable counting accuracy, ensuring a stable product flow via a vibration-controlled multi-channel counting system.
The AISI 304 stainless steel chassis and AISI 316L stainless steel surfaces that come into contact with the product offer long-lasting and safe use in compliance with the hygiene standards of the food, pharmaceutical and nutraceutical industries. Thanks to its filling structure with a large number of channels and adaptability to different packaging sizes, the system easily adapts to variable production capacities and minimises product losses with high counting accuracy.
Product paths suitable for maximum tablet diameter, a user-friendly control panel, inlet and outlet line full sensors, and low maintenance requirements ensure uninterrupted line flow, while the conveyor-based linear tablet counting line offers a reliable and flexible counting and filling solution for industrial production lines requiring high efficiency and process safety.
Which Products Do We Fill?
Sectors
Conveyor System Linear Powder Filling Line

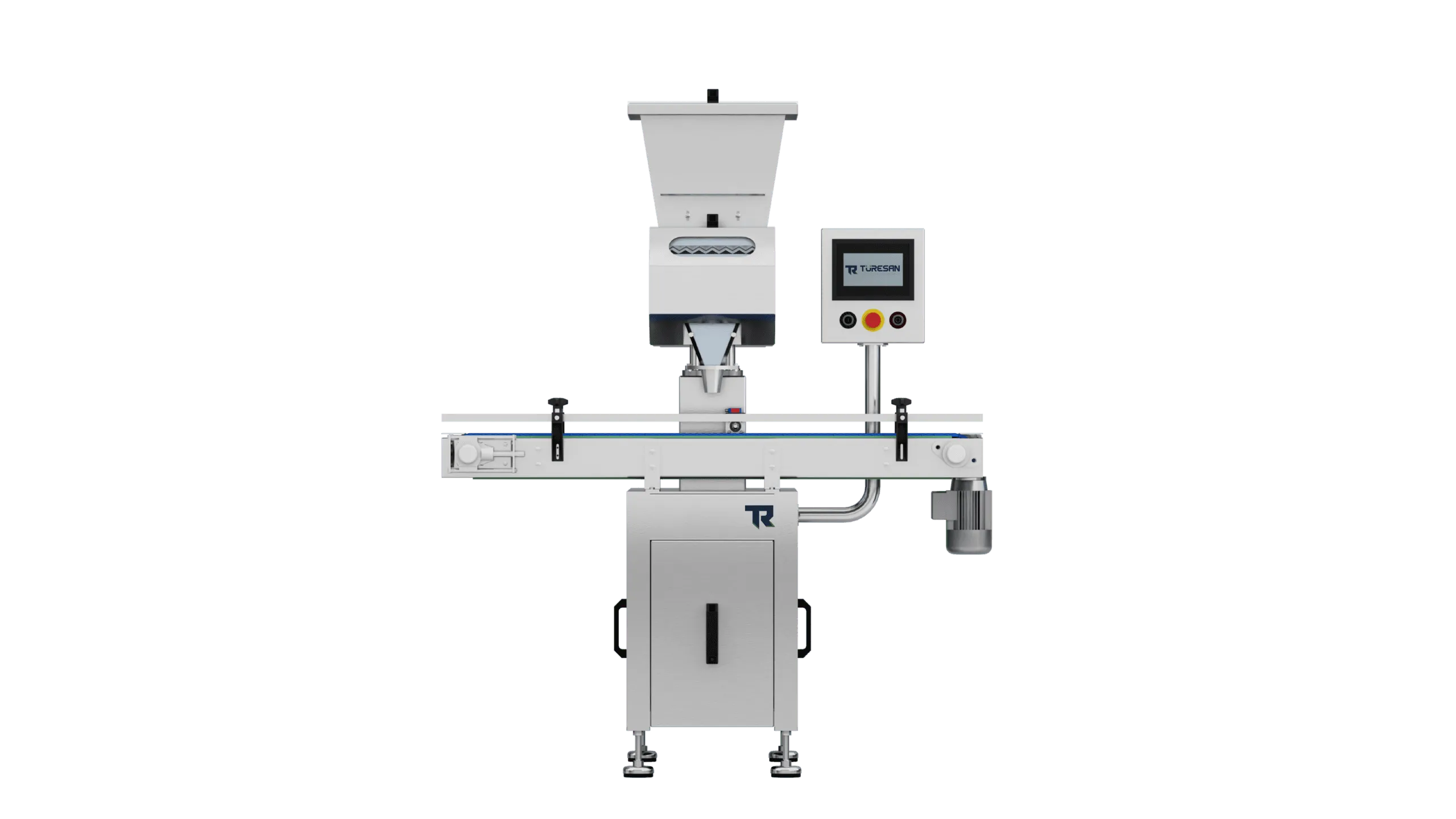

Conveyor System Linear Tablet Counting Machine
Conveyor System Linear Tablet Counting Machine
It is an automatic and precise counting system that prepares tablets for packaging quickly and reliably by counting them.
Linear System Capping Machine
Linear System Capping Machine
An efficient system that increases your production speed with automatic lid closing and securely seals your products.
Labelling Machine
Labelling Machine
It is a machine that adds speed and accuracy to your production process by quickly and accurately labeling your products with automatic labeling.
Bottle Cleaning Machine With Air
Bottle Cleaning Machine With Air
Cleaning the inside of bottles with air ensures hygiene before filling and increases quality and maximizes efficiency on your production line.

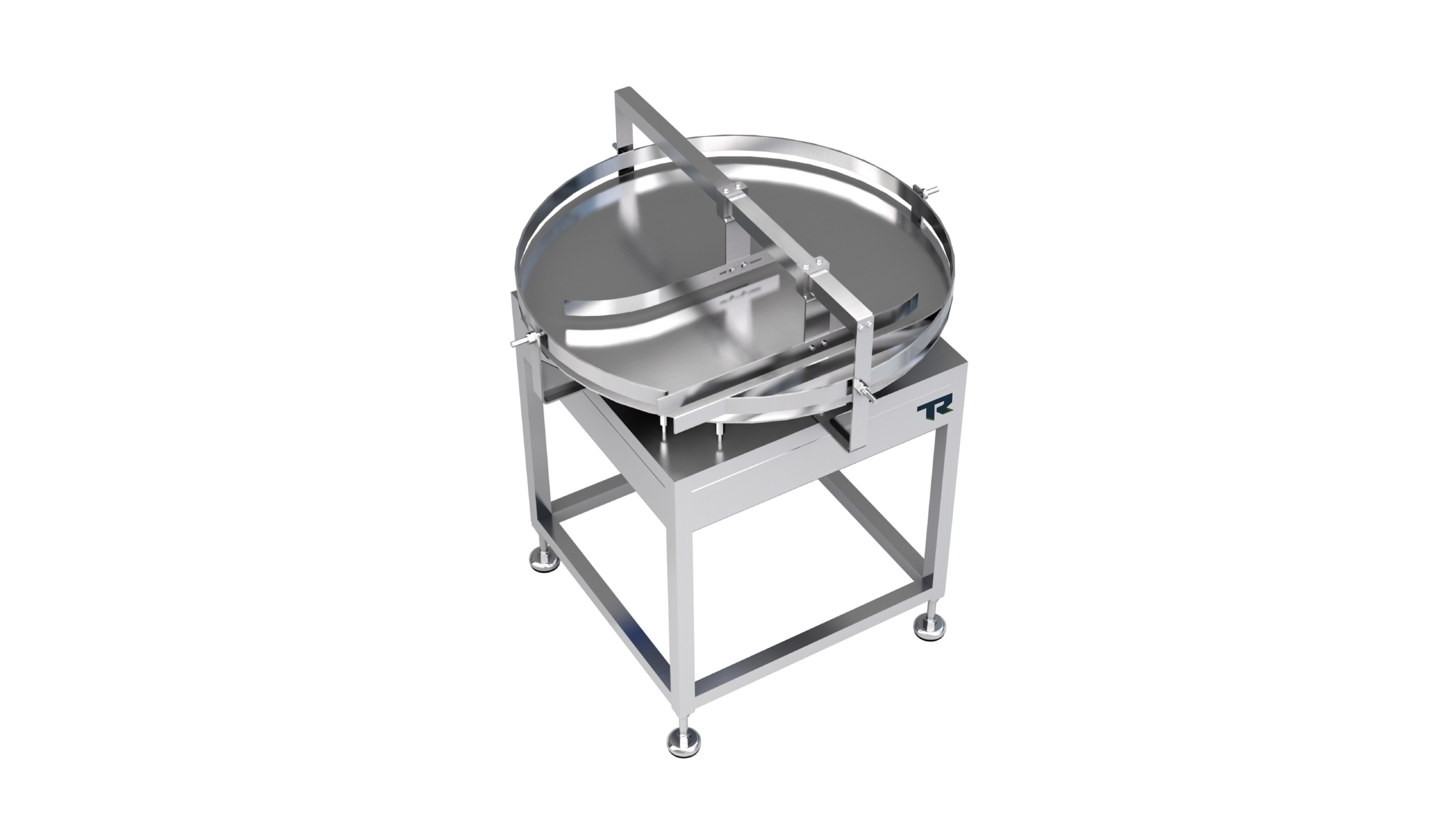

Feeding Tray
Feeding Tray
It is a tray that optimizes the production process by ensuring the regular and continuous feeding of materials to the production line.

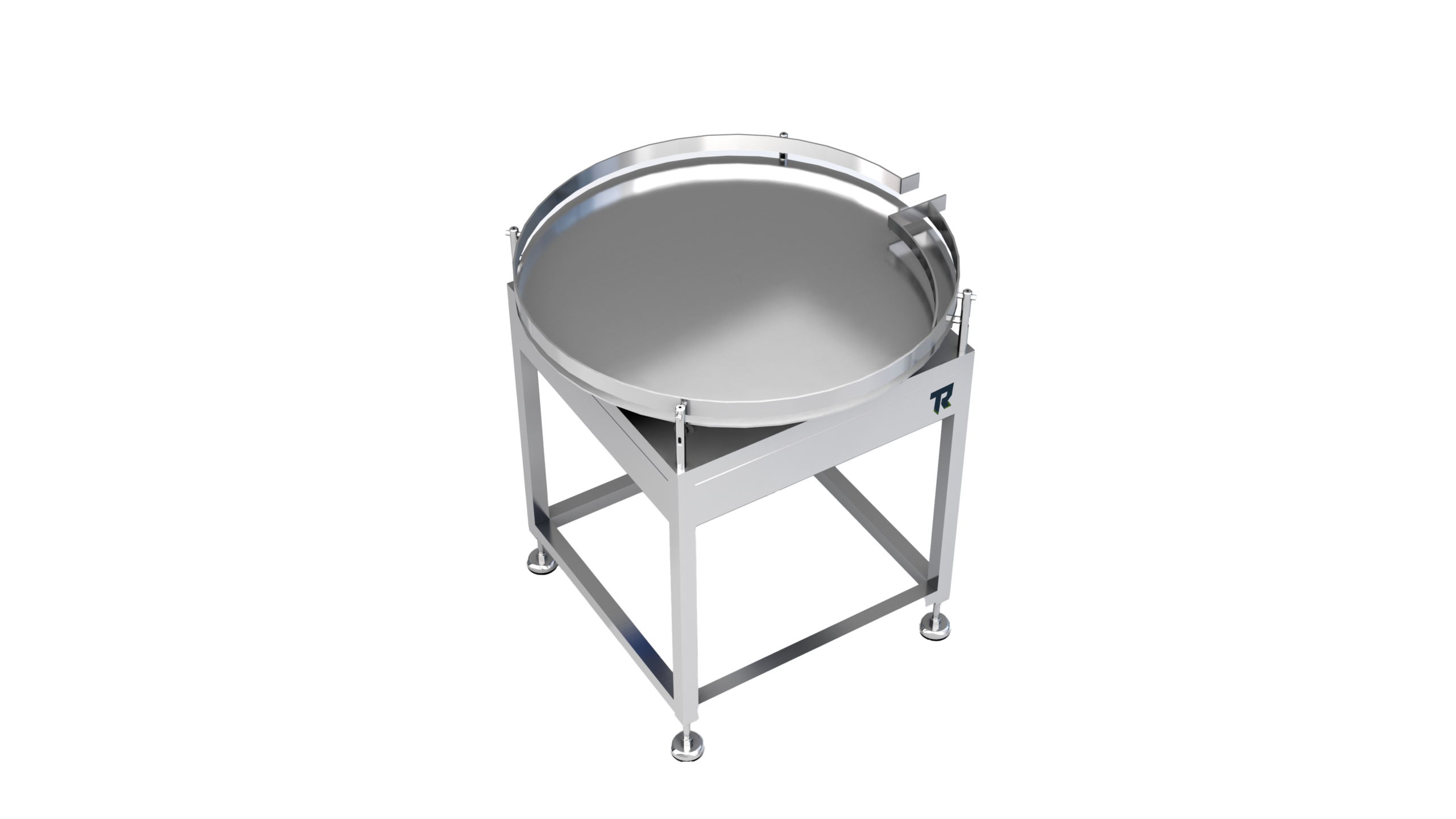

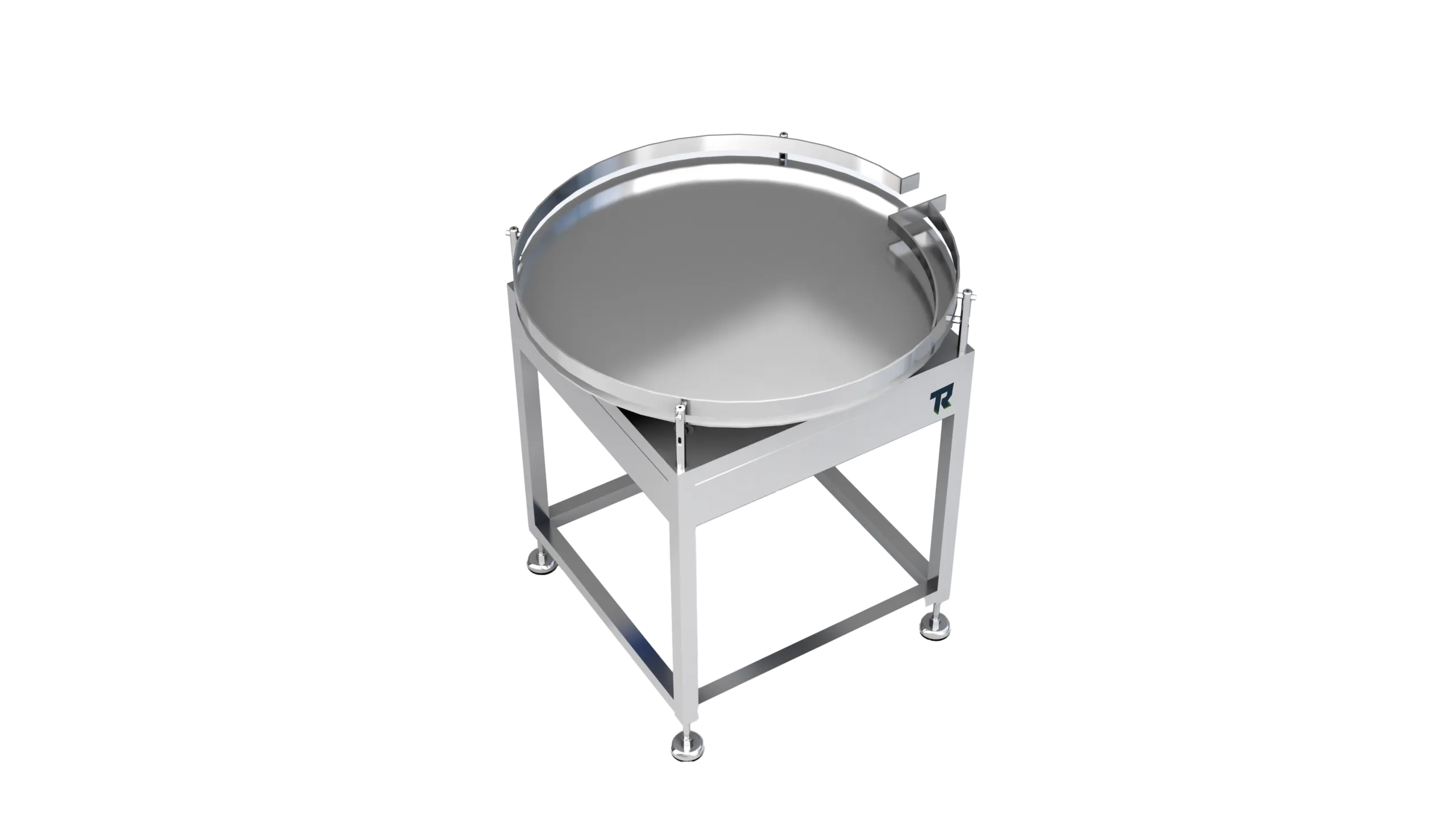

Collection Tray
Collection Tray
A tray that collects products coming off the production line in an orderly and safe manner, preparing them for packaging or subsequent processing.

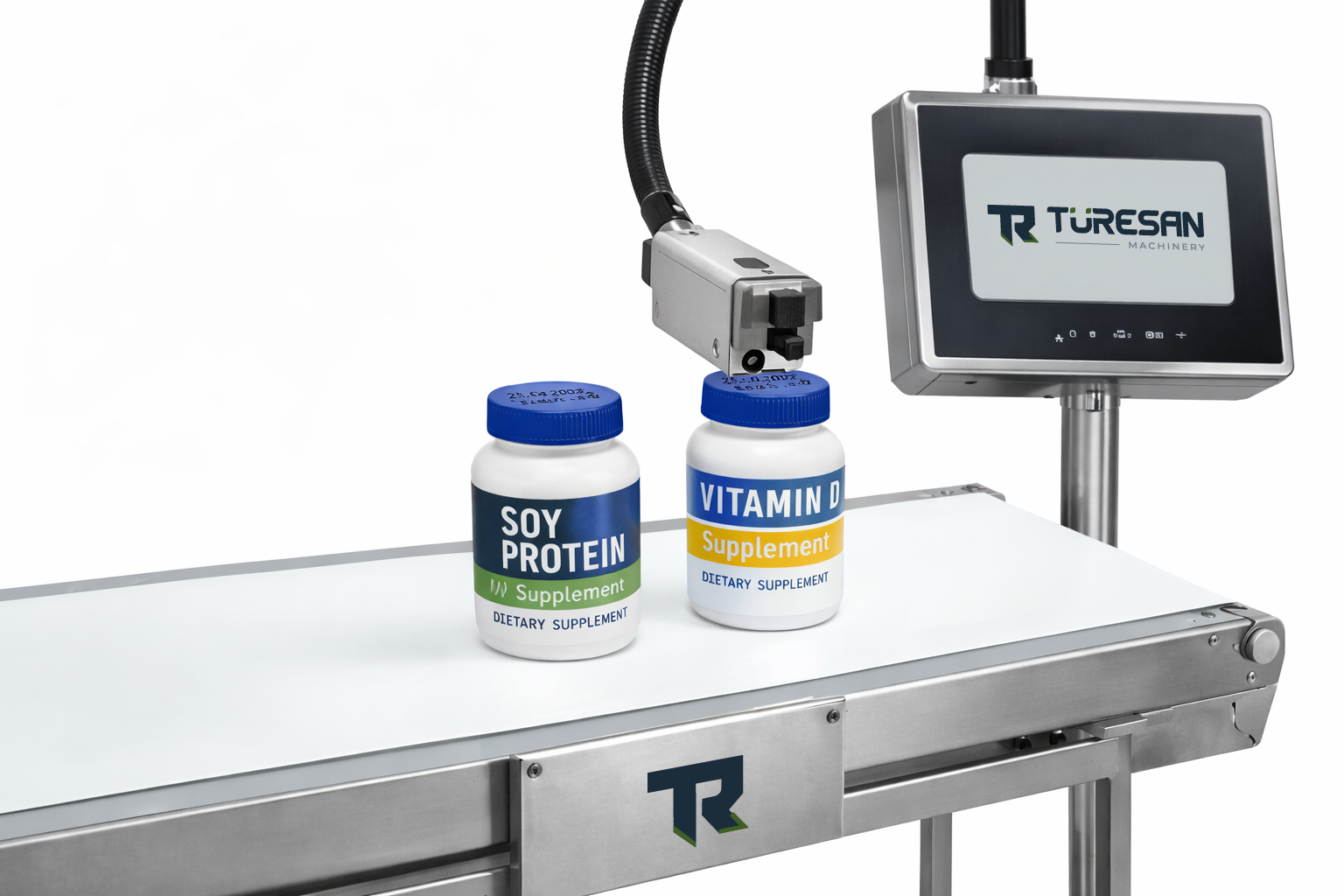

Inkjet Coding
Inkjet Coding
The inkjet coding system is a coding solution that enables the fast and clear contactless printing of information such as production date, expiration date, batch number, and similar details onto products on the production line.

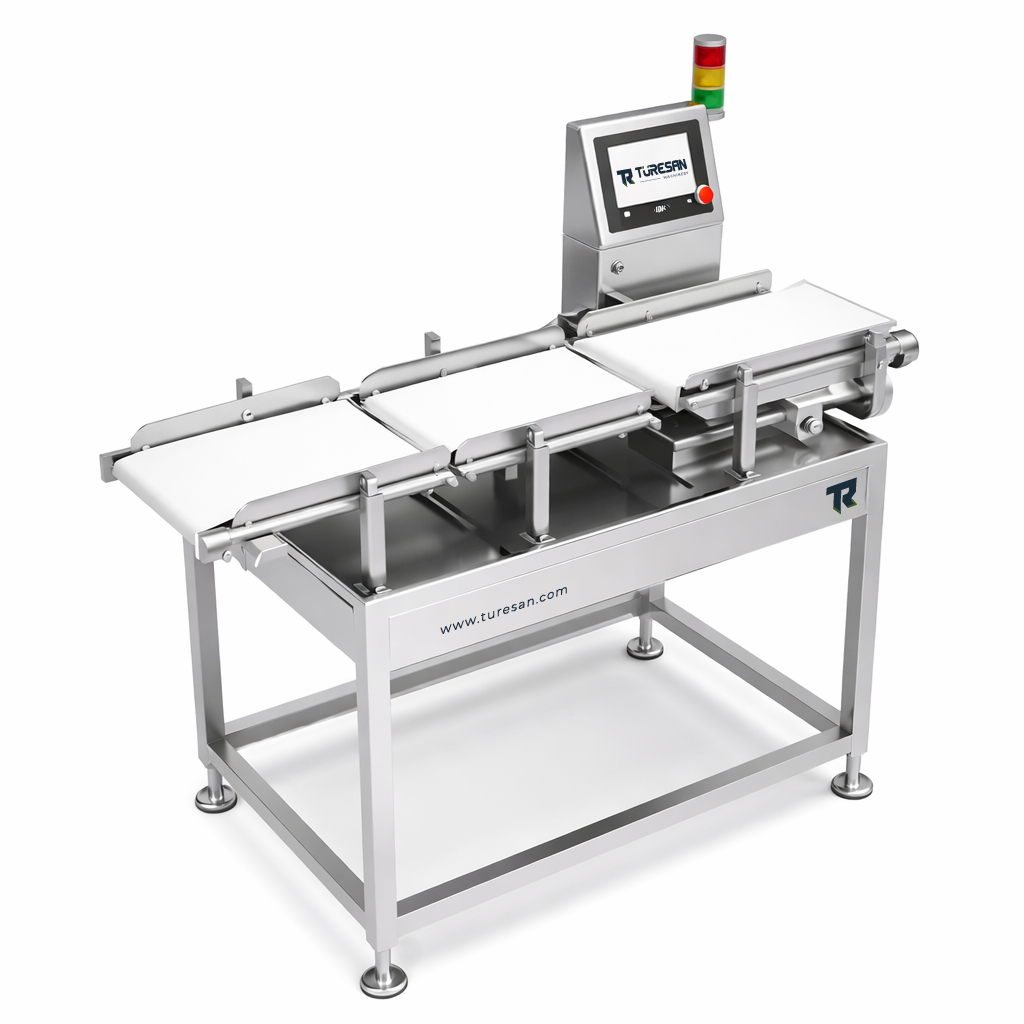

Check Weigher
Check Weigher
Check weigher is a quality control system that automatically checks the weight of products moving along the production line and separates products outside the tolerance range from the line.

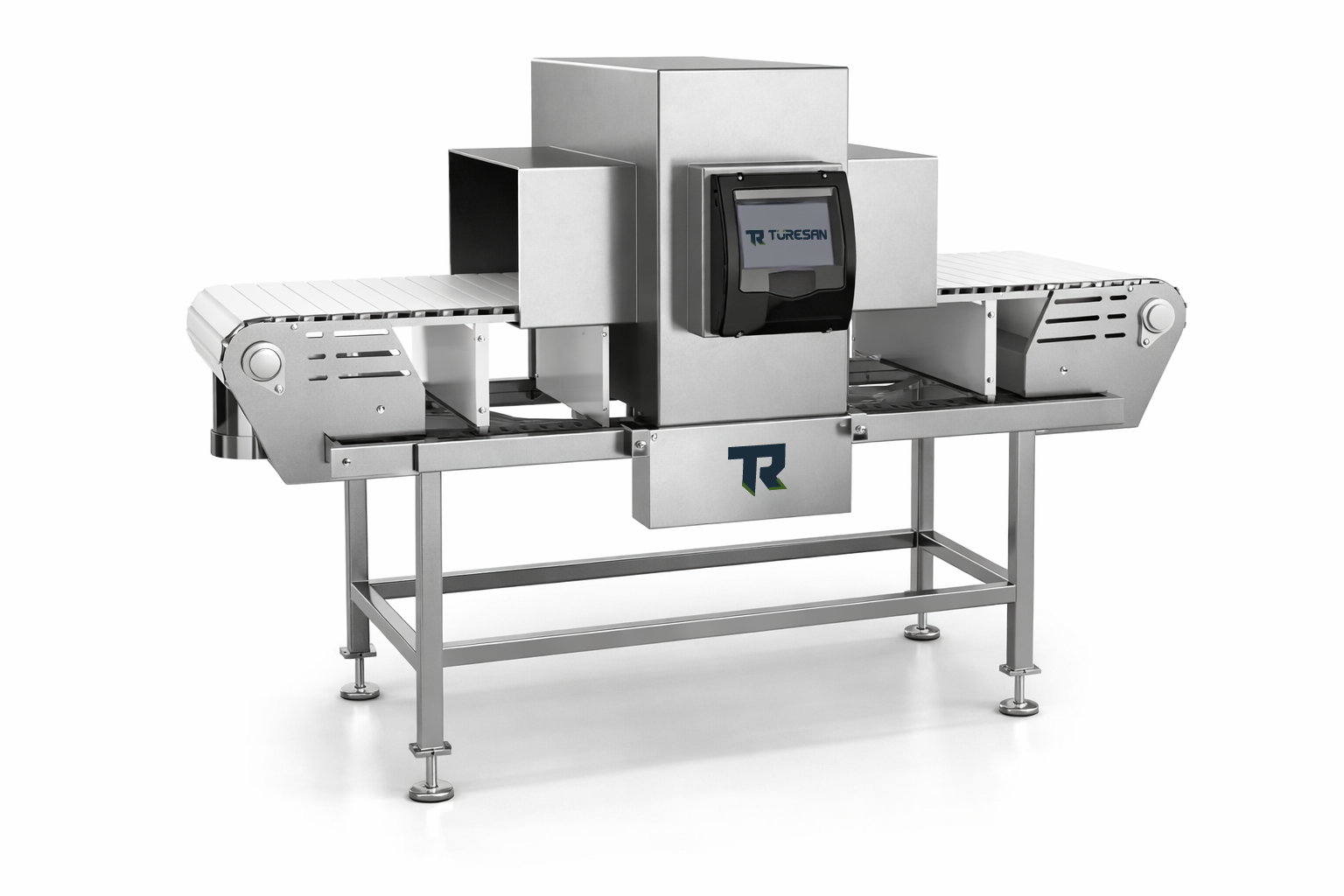

Metal Detector
Metal Detector
A metal detector is a quality safety system that inspects products on the production line to detect any potential metal contaminants and ensures that contaminated products are removed from the line.

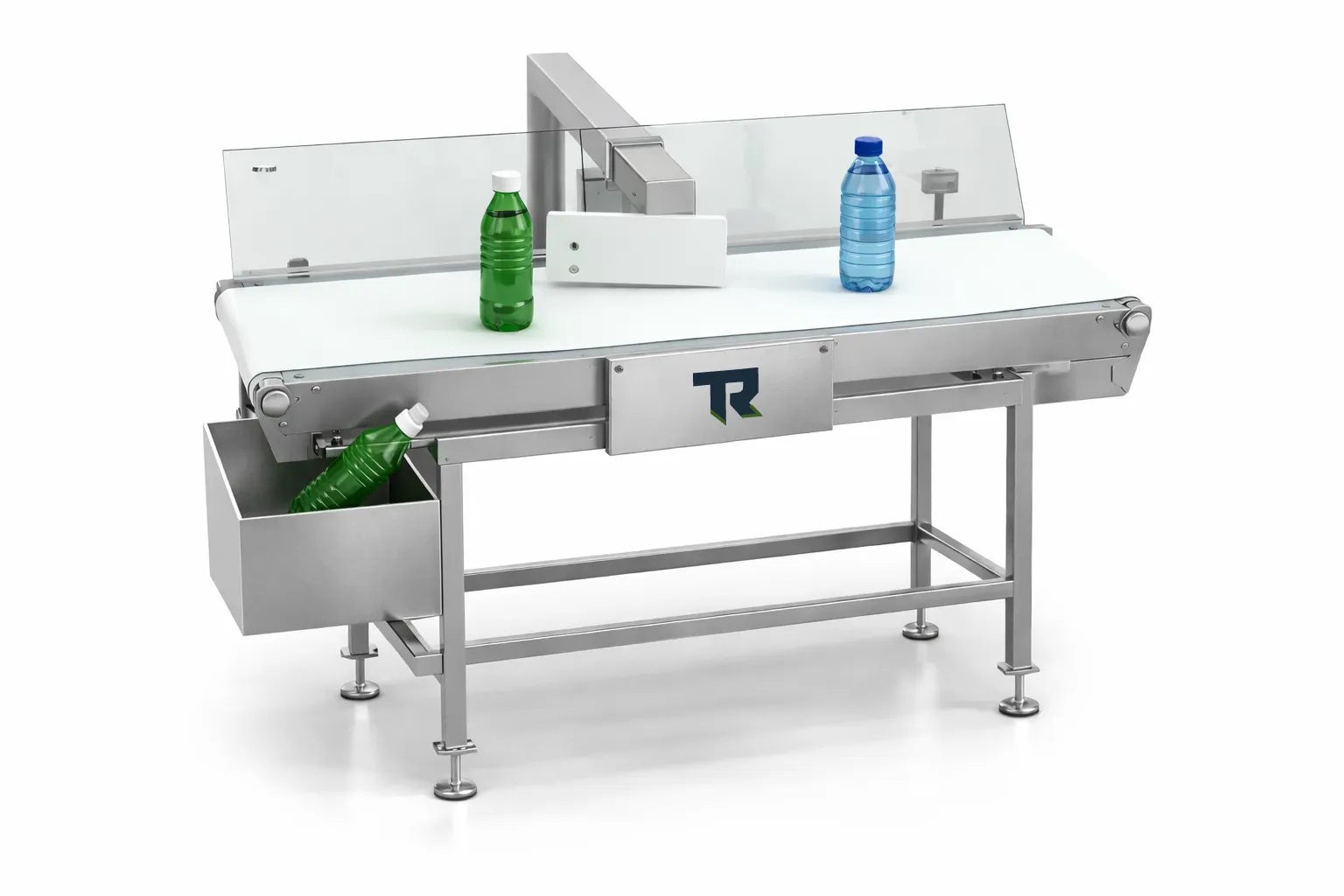

Reject Station
Reject Station
The reject station is a product diversion system that automatically separates products identified as defective by the control systems from the production line.
